SIGC42T170R3

IGBT

SIGC42T170R3 Features

* 1700V Trench + Field Stop technology

* low turn-off losses

* short tail current

* positive temperature coefficient

* easy paralleling 3 This chip is used for:

* power module C Applications:

* drives G E Chip Type SIGC42T170R3 VCE 1700

SIGC42T170R3 General Description

AQL 0,65 for visual inspection according to failure catalog Electrostatic Discharge Sensitive Device according to MIL-STD 883 Test-Normen Villach/Prüffeld Published by Infineon Technologies AG, Bereich Kommunikation St.-Martin-Strasse 53, D-81541 München © Infineon Technologies AG 2002 All Rights .

SIGC42T170R3 Datasheet (96.82 KB)

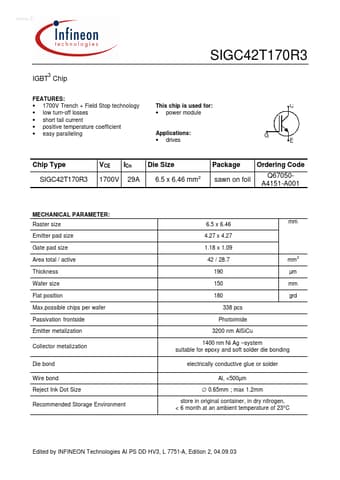

Preview of SIGC42T170R3 PDF

Datasheet Details

Part number:

SIGC42T170R3

Manufacturer:

Infineon ↗ Technologies

File Size:

96.82 KB

Description:

Igbt.
