SLG2016

Alphanumeric Intelligent Display DEVICES

Infineon Technologies

SLG2016 Features

* Very Close Multi-line Spacing, 0.4" Centers

* 0.180" 5 x 7 Dot Matrix Characters

* 128 Special ASCII Characters for English, German, Italian, Swedish, Danish, and Norwegian Languages

* Wide Viewing Angle: X axis 50° Maximum, Y Axis ±75° Maximum

* Fast Access

SLG2016 General Description

The SLR/SLO/SLG/SLY2016 is a four digit 5 x 7 dot matrix display module with a built-in CMOS integrated circuit. This display is X/Y stackable. The integrated circuit contains memory, a 128 ASCII ROM decoder, multiplexing circuitry and drivers. Data entry is asynchronous. A display system can be bui.

SLG2016 Datasheet (459.35 KB)

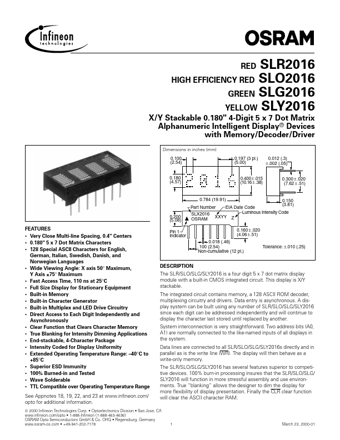

SLG2016 Datasheet Preview — Preview of SLG2016 PDF

Datasheet Details

Part number:

SLG2016

Manufacturer:

Infineon ↗ Technologies

File Size:

459.35 KB

Description:

Alphanumeric intelligent display devices.
SLR2016 HIGH EFFICIENCY RED SLO2016 GREEN SLG2016 YELLOW SLY2016 RED X/Y Stackable 0.180" 4-Digit 5 x 7 Dot Matrix Alphanumeric Intelligent Display® D.
