SLG46110

Programmable Mixed-Signal Matrix

SLG46110 Features

* Logic & Mixed Signal Circuits

* Highly Versatile Macrocells

* 1.8 V (±5 %) to 5 V (±10 %) Supply

* Operating Temperature Range: -40 °C to 85 °C

* RoHS Compliant / Halogen-Free

* Pb-Free 12-pin STQFN: 1.6 x 1.6 x 0.55 mm, 0.4 mm pitch Applications

SLG46110 General Description

2.1 Functional and Programming Pin Description Pin # 1 2 3 4 5 6 7 8 9 10 11 12 Pin Name VDD GPI GPIO GPIO NC GPIO GND GPIO GPIO GPIO NC GPIO Function Power Supply General Purpose Input General Purpose I/O or Analog Comparator 0 (+) General Purpose I/O or Analog Comparator 0 (-) No Connect Genera.

SLG46110 Datasheet (1.37 MB)

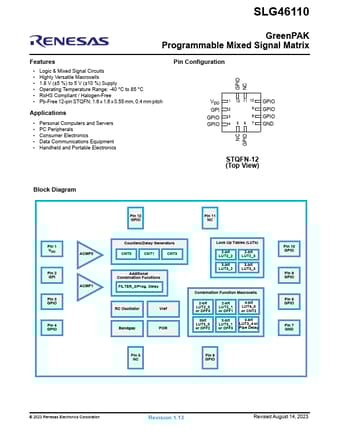

Preview of SLG46110 PDF

Datasheet Details

Part number:

SLG46110

Manufacturer:

Renesas ↗

File Size:

1.37 MB

Description:

Programmable mixed-signal matrix.
