SLG46140 - GreenPAK Programmable Mixed Signal Array

Product Overview

Silego

Datasheet Details

Part number	SLG46140
Manufacturer	Silego
File Size	687.23 KB
Description	GreenPAK Programmable Mixed Signal Array
Datasheet	SLG46140 Datasheet

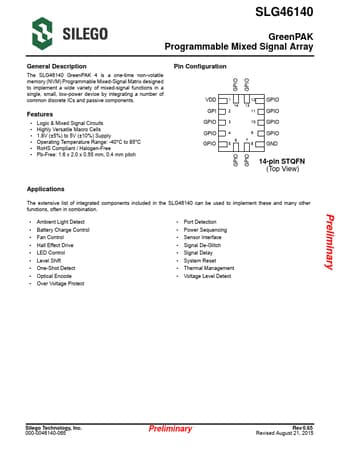

Additional preview pages of the SLG46140 datasheet.

Product details

Description

The SLG46140 GreenPAK 4 is a one-time non-volatile memory (NVM) Programmable Mixed-Signal Matrix designed to implement a wide variety of mixed-signal functions in a single, small, low-power device by integrating a number of common discrete ICs and passive components.

Features

Logic & Mixed Signal Circuits.
Highly Versatile Macro Cells.
1.8V (±5%) to 5V (±10%) Supply.
Operating Temperature Range: -40°C to 85°C.
RoHS Compliant / Halogen-Free.
Pb-Free: 1.6 x 2.0 x 0.55 mm, 0.4 mm pitch Pin Configuration GPIO GPIO VDD GPI GPIO GPIO GPIO 1 14 2 12 13 11 3 10 4 6 5 9 7 8 GPIO GPIO GPIO GPIO GND GPIO GPIO 14-pin STQFN (Top View).
