SLG46108

Ultra-small Programmable Mixed-signal Matrix

SLG46108 Features

* Logic & Mixed Signal Circuits

* Highly Versatile Macrocells

* 1.8 V (±5 %) to 5 V (±10 %) Supply

* Operating Temperature Range: -40 °C to 85 °C

* RoHS Compliant / Halogen-Free

* Pb-Free 8-pin STQFN: 1.0 x 1.2 x 0.55 mm, 0.4 mm pitch Applications

SLG46108 General Description

2.1 Functional Pin Description Pin # 1 2 3 4 5 6 7 8 Pin Name VDD GPI GPIO GPIO GND GPIO GPIO GPIO Function Power Supply General Purpose Input General Purpose I/O General Purpose I/O GND General Purpose I/O General Purpose I/O General Purpose I/O SLG46108 © 2023 Renesas Electronics Corporation .

SLG46108 Datasheet (1.03 MB)

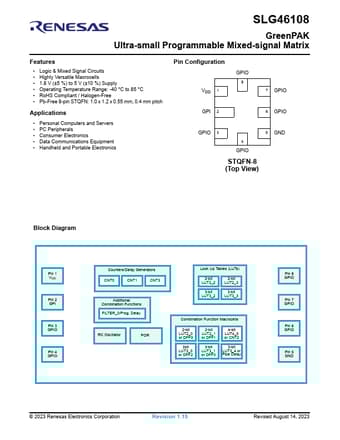

Preview of SLG46108 PDF

Datasheet Details

Part number:

SLG46108

Manufacturer:

Renesas ↗

File Size:

1.03 MB

Description:

Ultra-small programmable mixed-signal matrix.
