017N10N5, MOSFET

IPB017N10N5 MOSFET OptiMOSª 5 Power-Transistor, 100 V .

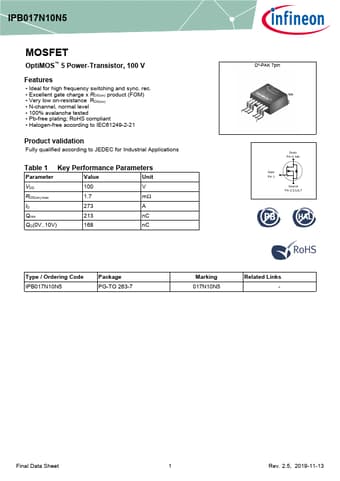

datasheet Preview Page 1 from Datasheet4u.com

017N10N5-Infineon.pdf

017N10N5 Datasheet Preview — Preview of 017N10N5 PDF

Datasheet Details

Part number:

017N10N5

Manufacturer:

Infineon ↗

File Size:

954.76 KB

Description:

MOSFET

Features

* Ideal for high frequency switching and sync. rec.
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Halogen-free according t

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 1.7 mΩ ID 273 A Qoss 213 nC QG(0V. .10V) 168 nC D²-PAK 7pin tab 1 7 Drain Pin 4, tab Gate Pin 1 Source Pin 2,3,5,6,7 Type / Ordering Code IPB017N10N5 Package PG-TO 263-7 Marking 017N10N5 Relat
