090N03L Power Transistor

090N03L Description

Type OptiMOS™3 Power-Transistor .

090N03L Features

* Fast switching MOSFET for SMPS
* Optimized technology for DC/DC converters

090N03L Applications

* N-channel, logic level
* Excellent gate charge x R DS(on) product (FOM)
* Very low on-resistance R DS(on)
* Avalanche rated
* Pb-free plating Type IPD090N03L G E8177 IPD090N03L G E8177 Product Summary VDS RDS(on),max ID 30 V 9 mW 40 A Package Marking

📥 Download Datasheet

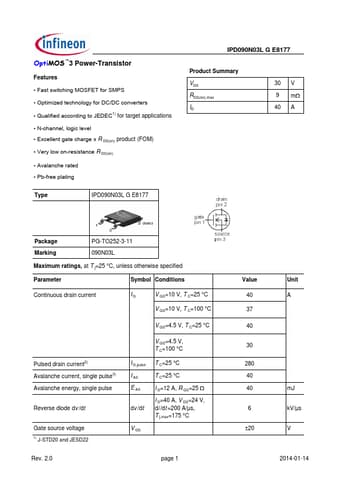

Preview of 090N03L PDF
datasheet Preview Page 2 datasheet Preview Page 3
