2DIB0401F, 2DIB0400F - Basic dual-channel digital isolators

Infineon

2DIB0401F Datasheet Preview — This datasheet PDF includes multiple part numbers: 2DIB0401F, 2DIB0400F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	2DIB0401F, 2DIB0400F
Manufacturer	Infineon ↗
File Size	895.79 KB
Description	Basic dual-channel digital isolators
Datasheet	2DIB0400F-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2DIB0401F, 2DIB0400F. Please refer to the document for exact specifications by model.

2DIB0401F Product details

Description

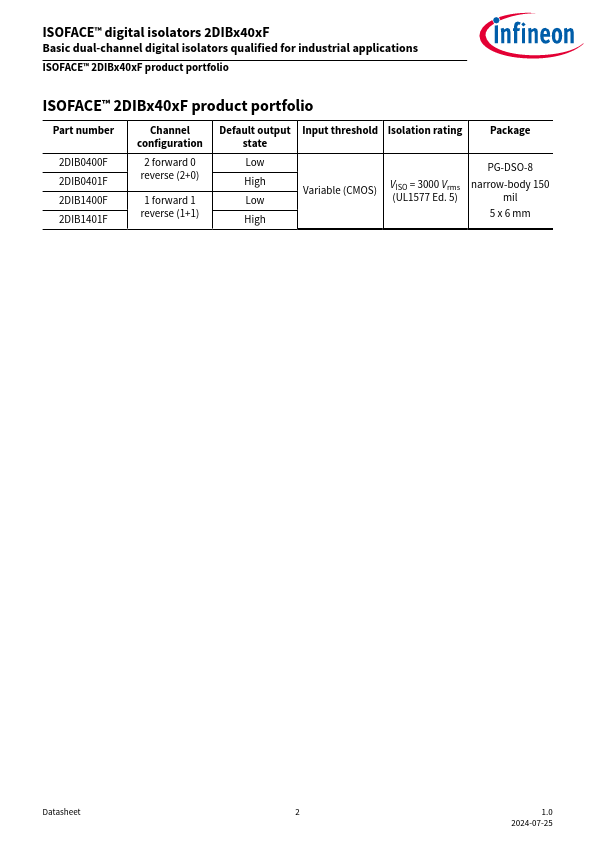

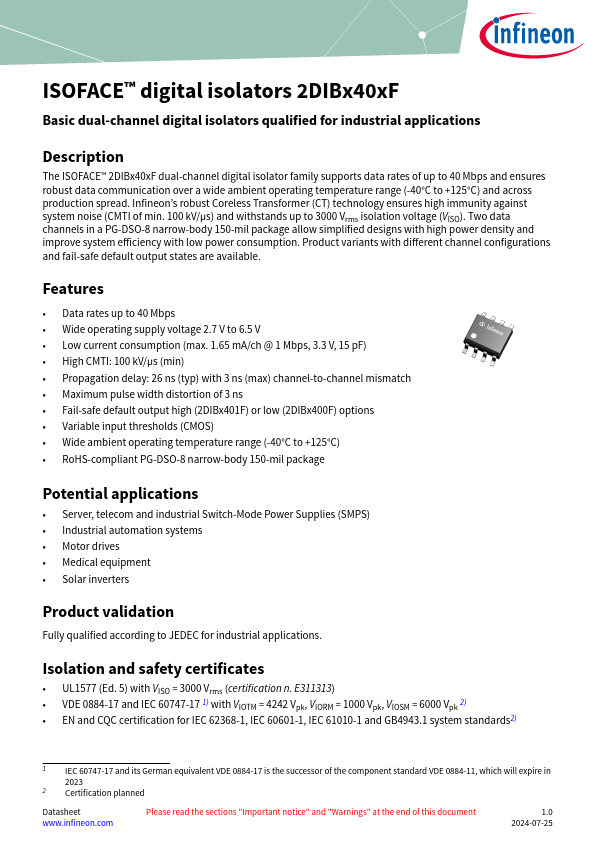

The ISOFACE™ 2DIBx40xF dual-channel digital isolator family supports data rates of up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range (-40°C to +125°C) and across production spread.

Features

Data rates up to 40 Mbps.
Wide operating supply voltage 2.7 V to 6.5 V.
Low current consumption (max. 1.65 mA/ch @ 1 Mbps, 3.3 V, 15 pF).
High CMTI: 100 kV/µs (min).
Propagation delay: 26 ns (typ) with 3 ns (max) channel-to-channel mismatch.
Maximum pulse width distortion of 3 ns.
Fail-safe default output high (2DIBx401F) or low (2DIBx400F) options.
Variable input thresholds (CMOS).
Wide ambient operating temperatu.
