2DIB0410F - Basic dual-channel digital isolators

Infineon

2DIB0410F Datasheet Preview — Preview of 2DIB0410F PDF

Datasheet Details

Part number	2DIB0410F
Manufacturer	Infineon ↗
File Size	868.26 KB
Description	Basic dual-channel digital isolators
Datasheet	2DIB0410F-Infineon.pdf

2DIB0410F Product details

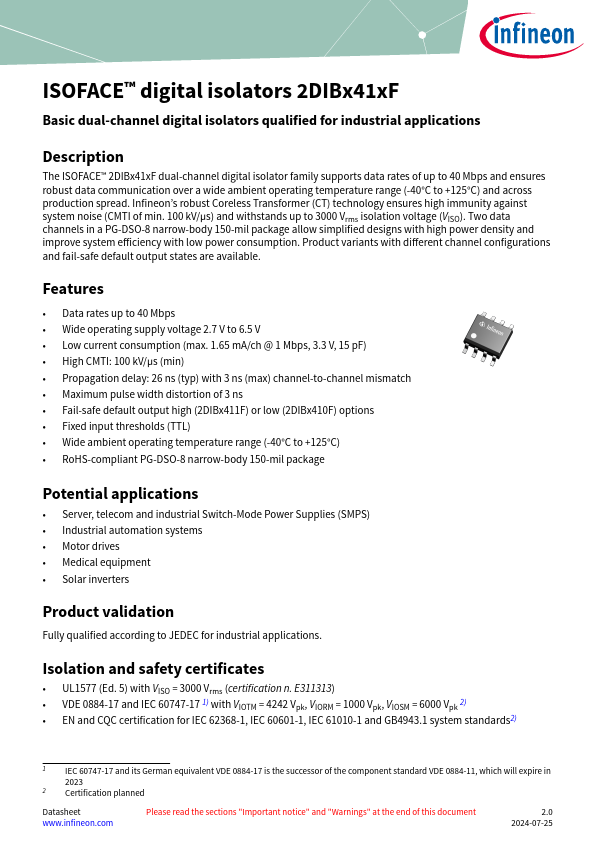

Description

The ISOFACE™ 2DIBx41xF dual-channel digital isolator family supports data rates of up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range (-40°C to +125°C) and across production spread.

Features

Data rates up to 40 Mbps.
Wide operating supply voltage 2.7 V to 6.5 V.
Low current consumption (max. 1.65 mA/ch @ 1 Mbps, 3.3 V, 15 pF).
High CMTI: 100 kV/µs (min).
Propagation delay: 26 ns (typ) with 3 ns (max) channel-to-channel mismatch.
Maximum pulse width distortion of 3 ns.
Fail-safe default output high (2DIBx411F) or low (2DIBx410F) options.
Fixed input thresholds (TTL).
Wide ambient operating temperature r.
