2DIB1401F, 2DIB0400F Datasheet - Infineon

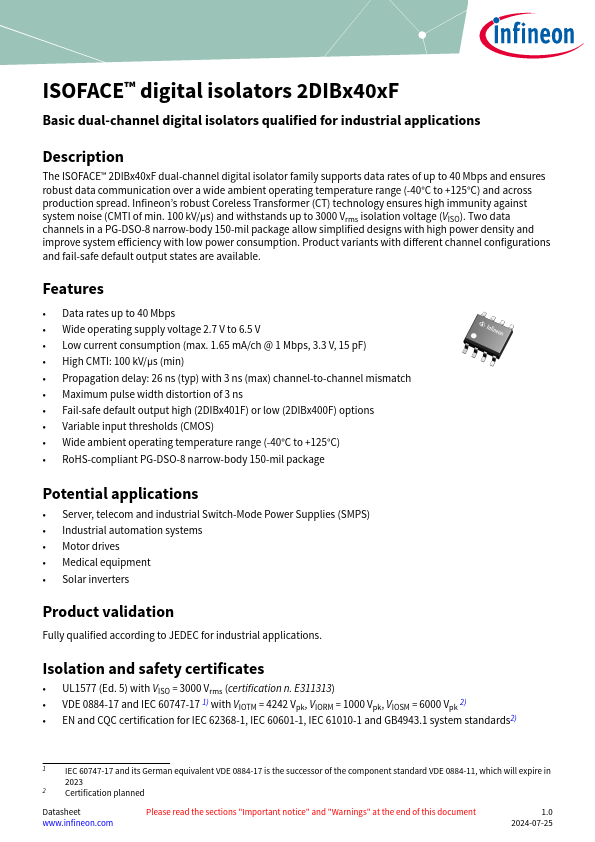

2DIB1401F Basic dual-channel digital isolators

The ISOFACE™ 2DIBx40xF dual-channel digital isolator family supports data rates of up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range (-40°C to +125°C) and across production spread. Infineon’s robust Coreless Transformer (CT) technology ensures high i.

2DIB1401F Features

* Data rates up to 40 Mbps

* Wide operating supply voltage 2.7 V to 6.5 V

* Low current consumption (max. 1.65 mA/ch @ 1 Mbps, 3.3 V, 15 pF)

* High CMTI: 100 kV/µs (min)

* Propagation delay: 26 ns (typ) with 3 ns (max) channel-to-channel mismatch

* Max

2DIB0400F-Infineon.pdf

This datasheet PDF includes multiple part numbers: 2DIB1401F, 2DIB0400F. Please refer to the document for exact specifications by model.

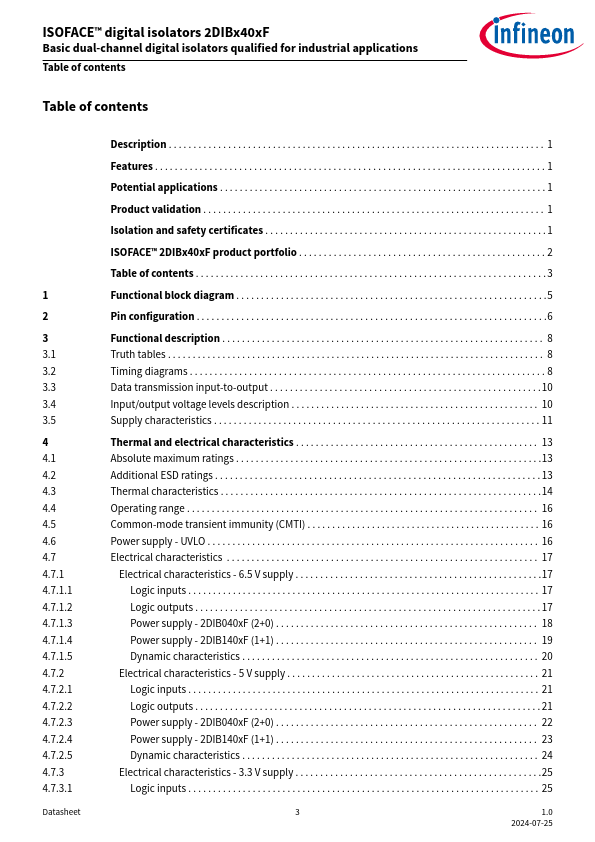

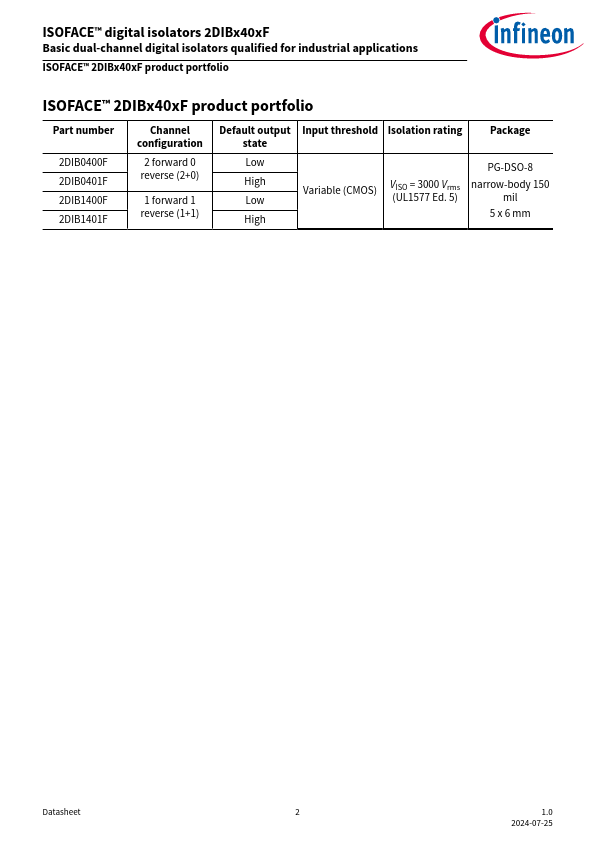

2DIB1401F Datasheet Preview Page 2 2DIB1401F Datasheet Preview Page 3

Datasheet Details

Part number:

2DIB1401F, 2DIB0400F

Manufacturer:

Infineon ↗

File Size:

895.79 KB

Description:

Basic dual-channel digital isolators.

Note:

This datasheet PDF includes multiple part numbers: 2DIB1401F, 2DIB0400F.
Please refer to the document for exact specifications by model.
