2DIB1411F Datasheet - Infineon

Basic dual-channel digital isolators

2DIB1411F Features

* Data rates up to 40 Mbps

* Wide operating supply voltage 2.7 V to 6.5 V

* Low current consumption (max. 1.65 mA/ch @ 1 Mbps, 3.3 V, 15 pF)

* High CMTI: 100 kV/µs (min)

* Propagation delay: 26 ns (typ) with 3 ns (max) channel-to-channel mismatch

* Max

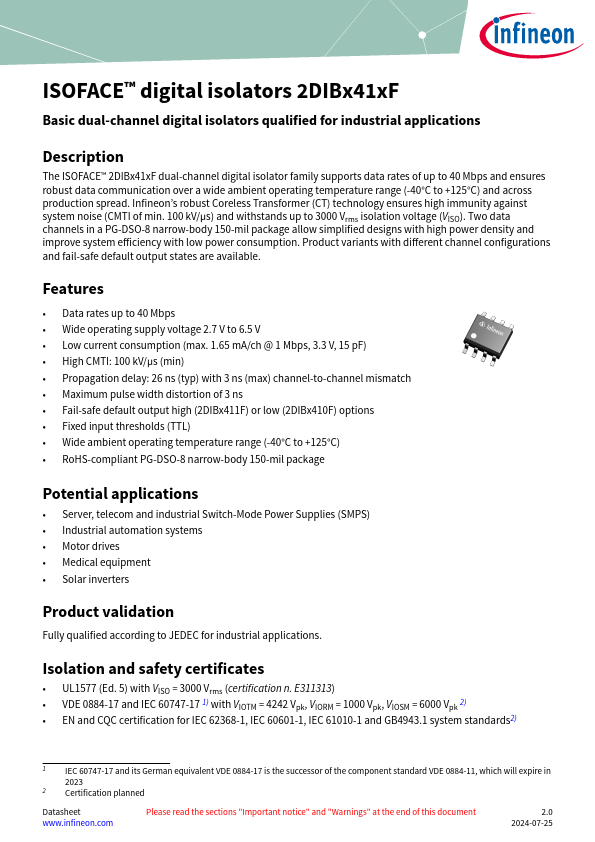

2DIB1411F General Description

The ISOFACE™ 2DIBx41xF dual-channel digital isolator family supports data rates of up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range (-40°C to +125°C) and across production spread. Infineon’s robust Coreless Transformer (CT) technology ensures high i.

2DIB1411F Datasheet (868.26 KB)
