2ED3141MC12L, 2ED3140MC12L - Dual-channel isolated gate driver

Infineon

📥 Download Datasheet

2ED3141MC12L Datasheet Preview — This datasheet PDF includes multiple part numbers: 2ED3141MC12L, 2ED3140MC12L. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

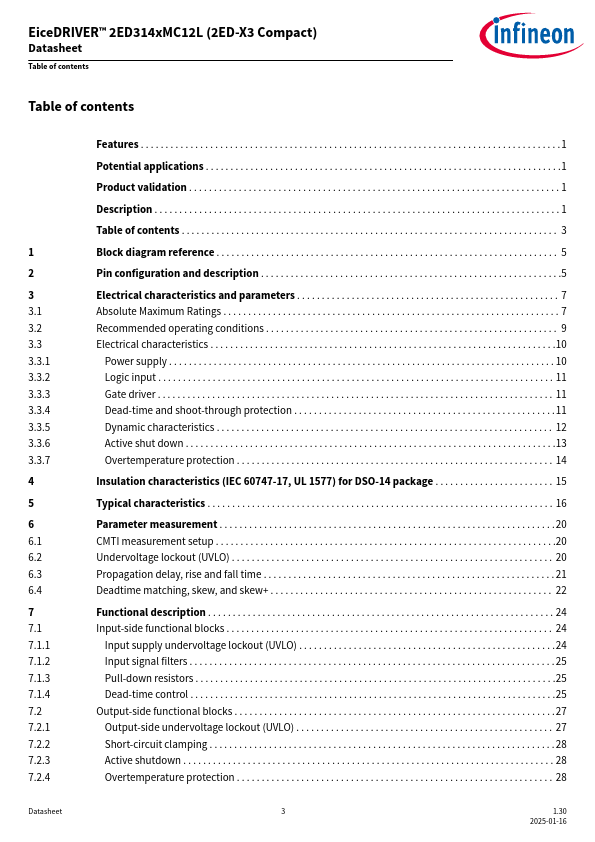

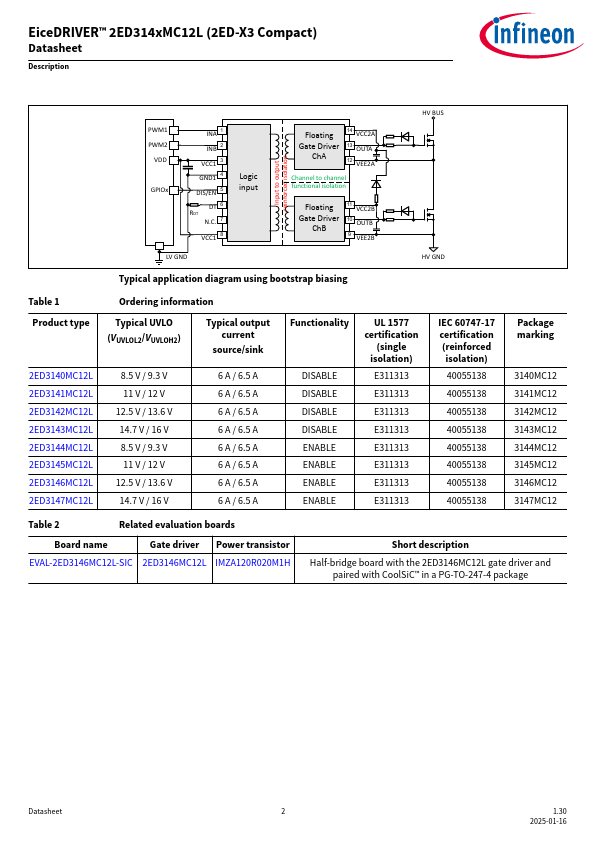

datasheet Preview Page 3

Datasheet Details

Part number	2ED3141MC12L, 2ED3140MC12L
Manufacturer	Infineon ↗
File Size	4.45 MB
Description	Dual-channel isolated gate driver
Datasheet	2ED3140MC12L-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2ED3141MC12L, 2ED3140MC12L. Please refer to the document for exact specifications by model.

2ED3141MC12L Product details

Description

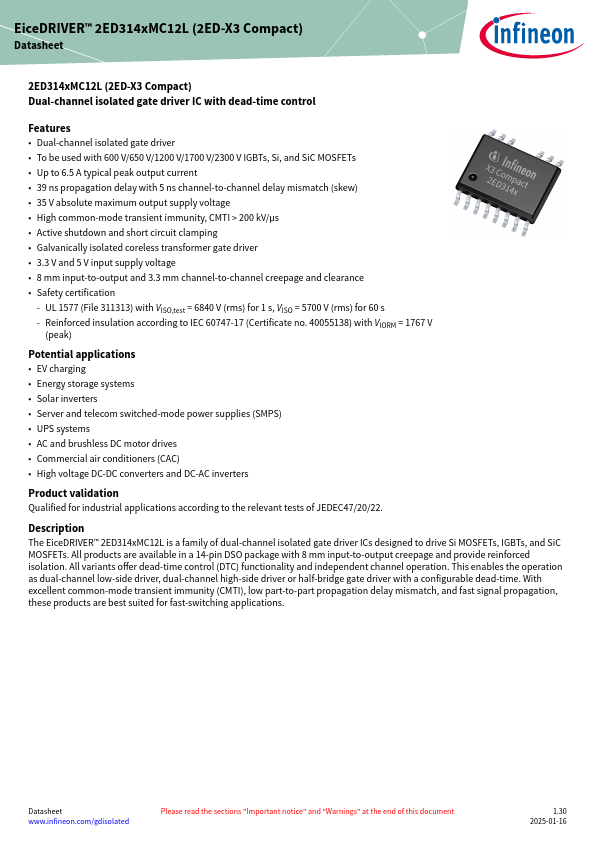

The EiceDRIVER™ 2ED314xMC12L is a family of dual-channel isolated gate driver ICs designed to drive Si MOSFETs, IGBTs, and SiC MOSFETs.

Features

Dual-channel isolated gate driver.
To be used with 600 V/650 V/1200 V/1700 V/2300 V IGBTs, Si, and SiC MOSFETs.
Up to 6.5 A typical peak output current.
39 ns propagation delay with 5 ns channel-to-channel delay mismatch (skew).
35 V absolute maximum output supply voltage.
High common-mode transient immunity, CMTI > 200 kV/µs.
Active shutdown and short circuit clamping.
Galvanically isolated coreless transformer gate driver.
