2ED3146MC12L, 2ED3140MC12L Dual-channel isolated gate driver

2ED3146MC12L Description

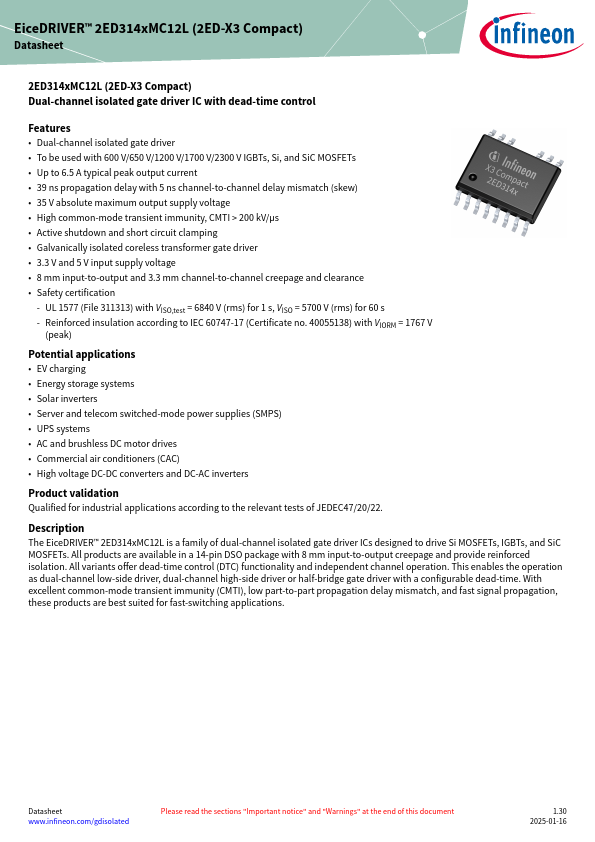

EiceDRIVER™ 2ED314xMC12L (2ED-X3 Compact) Datasheet 2ED314xMC12L (2ED-X3 Compact) Dual-channel isolated gate driver IC with dead-time control .
The EiceDRIVER™ 2ED314xMC12L is a family of dual-channel isolated gate driver ICs designed to drive Si MOSFETs, IGBTs, and SiC MOSFETs.

2ED3146MC12L Features

* Dual-channel isolated gate driver
* To be used with 600 V/650 V/1200 V/1700 V/2300 V IGBTs, Si, and SiC MOSFETs
* Up to 6.5 A typical peak output current
* 39 ns propagation delay with 5 ns channel-to-channel delay mismatch (skew)
* 35 V absolute maximum out

2ED3146MC12L Applications

* EV charging
* Energy storage systems
* Solar inverters
* Server and telecom switched-mode power supplies (SMPS)
* UPS systems
* AC and brushless DC motor drives
* Commercial air conditioners (CAC)
* High voltage DC-DC converters and D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2ED3146MC12L, 2ED3140MC12L. Please refer to the document for exact specifications by model.

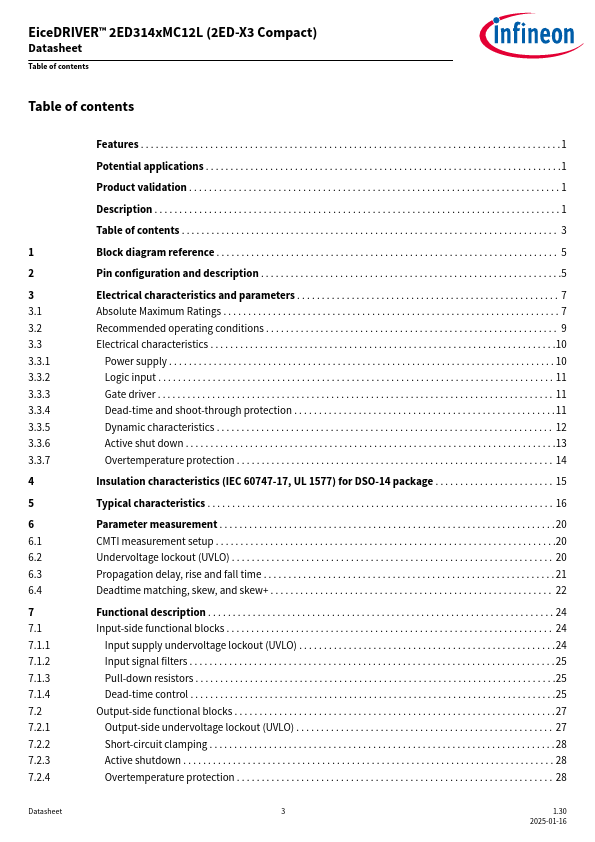

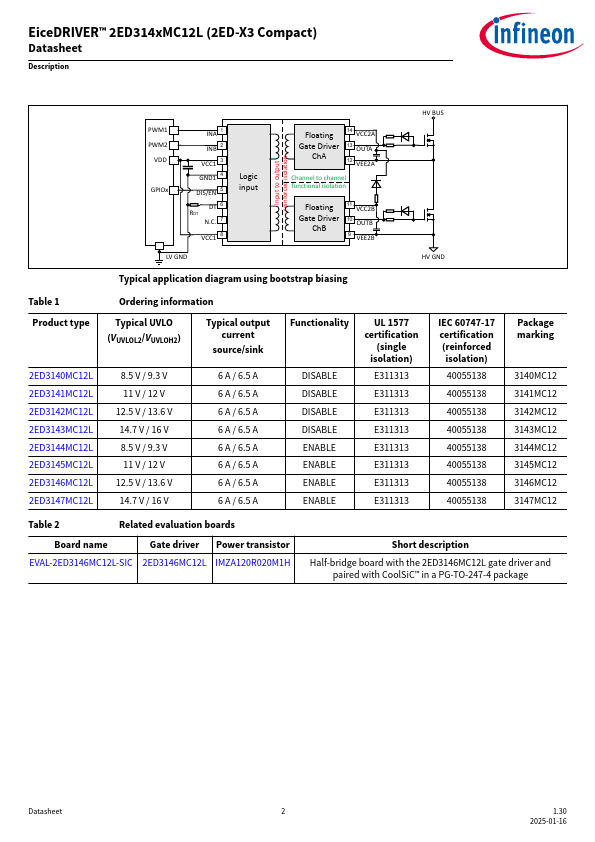

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2ED3146MC12L, 2ED3140MC12L
Manufacturer
Infineon ↗
File Size
4.45 MB
Datasheet
2ED3140MC12L-Infineon.pdf
Description
Dual-channel isolated gate driver
Note
This datasheet PDF includes multiple part numbers: 2ED3146MC12L, 2ED3140MC12L.
Please refer to the document for exact specifications by model.
