2EDN8523F

advanced dual-channel driver

2EDN8523F Features

* Fast, precise, strong and compatible

* Highly efficient SMPS enabled by 5 ns fast slew rates and 17 ns propagation delay precision for fast MOSFET and GaN switching

* 1 ns channel-to-channel propagation delay accuracy enables safe use of two channels in parallel

* Two indepen

2EDN8523F General Description

The 2EDN752x/2EDN852x is an advanced dual-channel driver. It is suited to drive logic and normal level MOSFETs and supports OptiMOS™, CoolMOS™, Standard Level MOSFETs, Superjunction MOSFETs, as well as IGBTs and GaN Power devices. Datasheet Please read the Important Notice and Warnings at the end .

2EDN8523F Datasheet (1.06 MB)

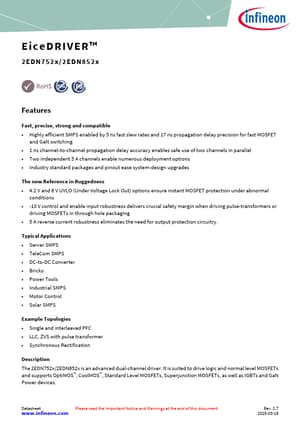

Preview of 2EDN8523F PDF

Datasheet Details

Part number:

2EDN8523F

Manufacturer:

Infineon ↗

File Size:

1.06 MB

Description:

Advanced dual-channel driver.
