2EDN8533F

Dual-channel low-side 5A gate driver

2EDN8533F Features

* Applications

* ±5 A source/sink currents

* Switch-mode power-supplies

* 19 ns typ. propagation delay

* DC-DC power converters

* +6/-4 ns propagation delay accuracy

* Synchronous rectification stages

* 1.8 µs output start-up time

2EDN8533F General Description

The EiceDRIVER™ 2EDN family is offered in 8-pin DSO, TSSOP and WSON packages as well as in small and versatile 6-pin SOT23 package. High output current capability together with active output voltage clamping, tight timing specifications, and optimized start-up and shut-down times, make the 2EDN fami.

2EDN8533F Datasheet (1.32 MB)

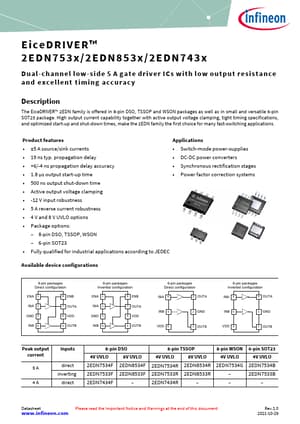

Preview of 2EDN8533F PDF
