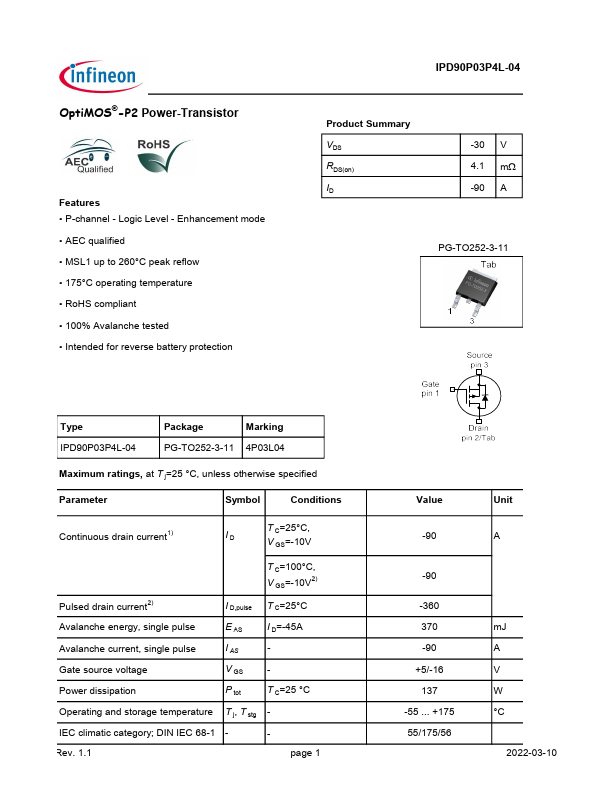

4P03L04 - Power-Transistor

Infineon

Datasheet Details

P-channel - Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
RoHS compliant.
100% Avalanche tested.
Intended for reverse battery protection IPD90P03P4L-04 Product Summary VDS RDS(on) ID -30 V 4.1 mW -90 A PG-TO252-3-11 Type IPD90P03P4L-04 Package Marking PG-TO252-3-11 4P03L04 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Con.
