6EDL04N065PR Datasheet - Infineon

three-phase gate driver

6EDL04N065PR Features

* Infineon thin-film-SOI-technology

* Maximum blocking voltage +650 V

* Output source/sink current +0.165 A/-0.375 A

* Integrated ultra-fast, low RDS(ON) Bootstrap Diode

* Insensitivity of the bridge output to negative transient voltages up to -50 V given by S

6EDL04N065PR General Description

The device 6ED family * 3rd generation is a full bridge driver to control power devices like MOS-transistors or IGBTs in 3-phase systems with a maximum blocking voltage of +650 V. Based on the used SOI-technology there is an excellent ruggedness on transient voltages. No parasitic thyristor .

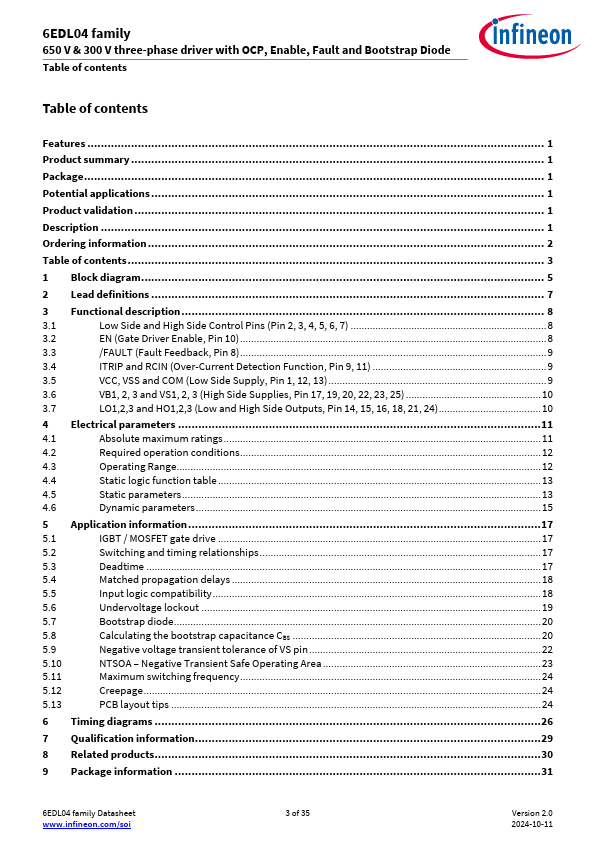

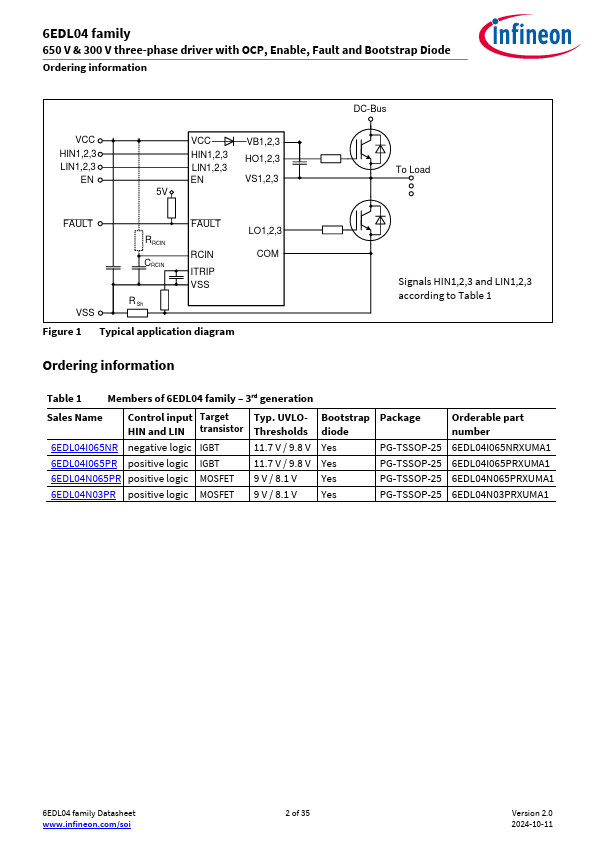

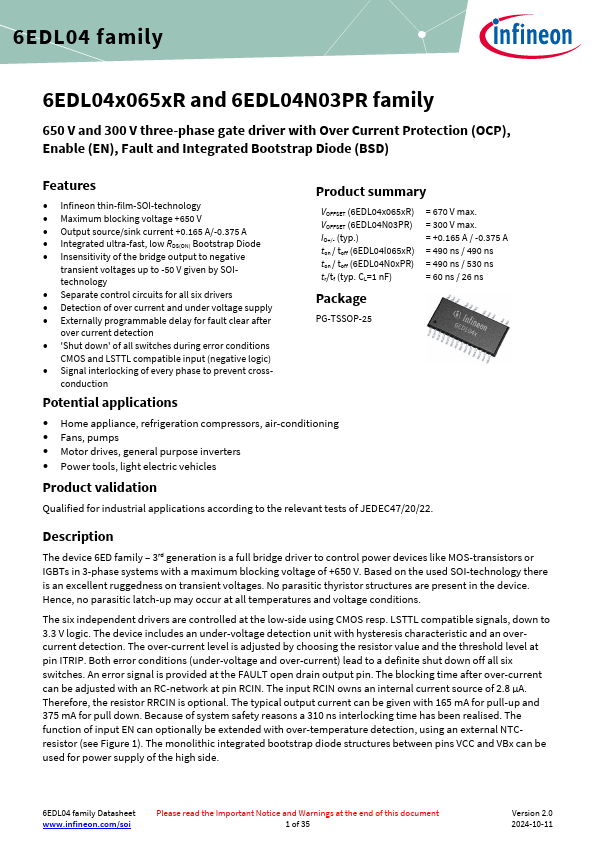

6EDL04N065PR Datasheet (953.79 KB)

6EDL04N065PR Datasheet Preview — Preview of 6EDL04N065PR PDF

Datasheet Details

Part number:

6EDL04N065PR

Manufacturer:

Infineon ↗

File Size:

953.79 KB

Description:

Three-phase gate driver.
6EDL04 family 6EDL04x065xR and 6EDL04N03PR family 650 V and 300 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and .
