6EDL04N065PT 650V three-phase gate driver

The device 6ED family * 2nd generation is a full bridge driver to control power devices like MOS-transistors or IGBTs in 3-phase systems with a maximum blocking voltage of +650 V. Based on the used SOI-technology there is an excellent ruggedness on transient voltages. No parasitic thyristor .

6EDL04N065PT Features

* Infineon thin-film-SOI-technology

* Maximum blocking voltage +650 V

* Output source/sink current +0.165 A/-0.375 A

* Integrated ultra-fast, low RDS(ON) Bootstrap Diode

* Insensitivity of the bridge output to negative transient voltages up to -50 V given by S

6EDL04I065NT-Infineon.pdf

This datasheet PDF includes multiple part numbers: 6EDL04N065PT, 6EDL04I065NT. Please refer to the document for exact specifications by model.

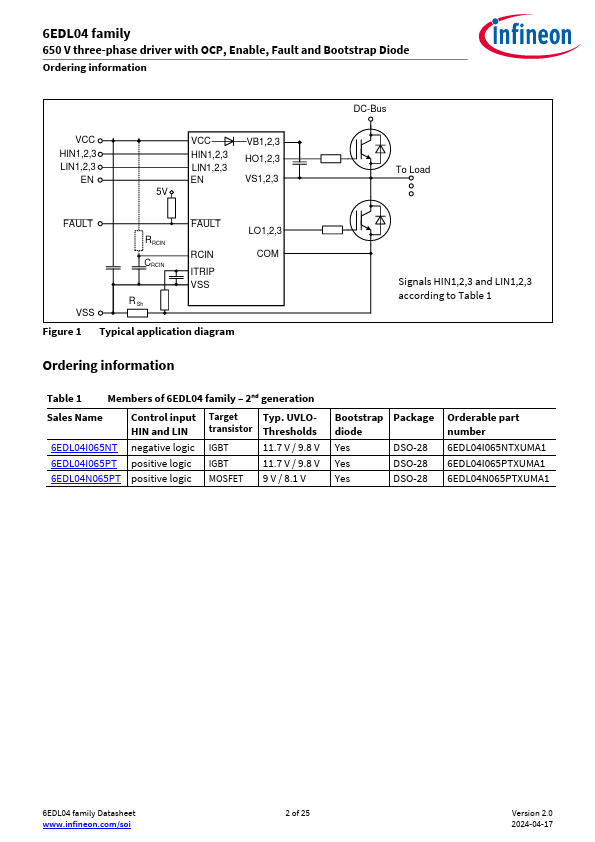

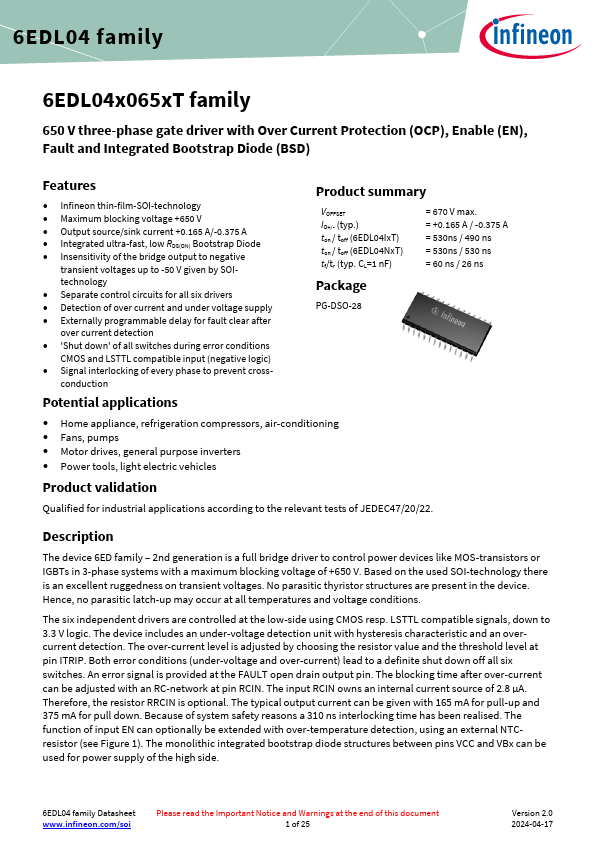

6EDL04N065PT Datasheet Preview Page 2 6EDL04N065PT Datasheet Preview Page 3

Datasheet Details

Part number:

6EDL04N065PT, 6EDL04I065NT

Manufacturer:

Infineon ↗

File Size:

592.85 KB

Description:

650v three-phase gate driver.

Note:

This datasheet PDF includes multiple part numbers: 6EDL04N065PT, 6EDL04I065NT.
Please refer to the document for exact specifications by model.
