AIMZH120R040M1T - 1200V SiC MOSFET

Infineon

AIMZH120R040M1T Datasheet Preview — Preview of AIMZH120R040M1T PDF

Datasheet Details

Part number	AIMZH120R040M1T
Manufacturer	Infineon ↗
File Size	1.75 MB
Description	1200V SiC MOSFET
Datasheet	AIMZH120R040M1T-Infineon.pdf

AIMZH120R040M1T Product details

Description

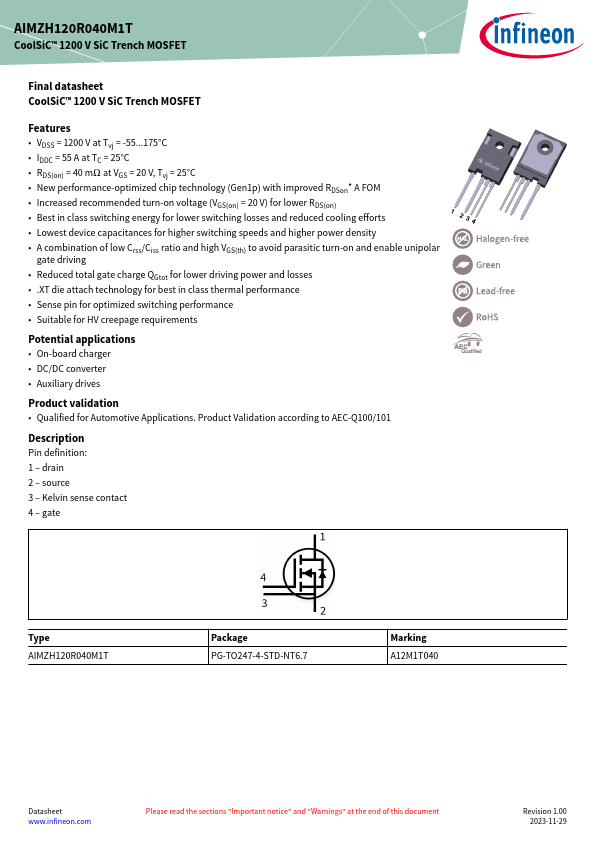

Pin definition: 1 drain 2 source 3 Kelvin sense contact 4 gate Type AIMZH120R040M1T Package PG-TO247-4-STD-NT6.7 Marking A12M1T040 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2023-11-29 AIMZH120R040M1T CoolSiC™ 1200 V SiC Trench MOSFET Table of contents Table of contents Description

Features

PG-TO247-4-STD-NT6.7.
VDSS = 1200 V at Tvj = -55175°C.
IDDC = 55 A at TC = 25°C.
RDS(on) = 40 mΩ at VGS = 20 V, Tvj = 25°C.
New performance-optimized chip technology (Gen1p) with improved RDSon.
A FOM.
Increased recommended turn-on voltage (VGS(on) = 20 V) for lower RDS(on).
Best in class switching energy for lower switching losses and reduced cooling efforts.
Lowest device capacitances for higher switching speeds and higher p.
