BAV99U - Silicon Switching Diode

This page provides the datasheet information for the BAV99U, a member of the BAV99 Silicon Switching Diode family.

Infineon

Datasheet Details

Part number	BAV99U
Manufacturer	Infineon
File Size	166.19 KB
Description	Silicon Switching Diode
Datasheet	BAV99U Datasheet

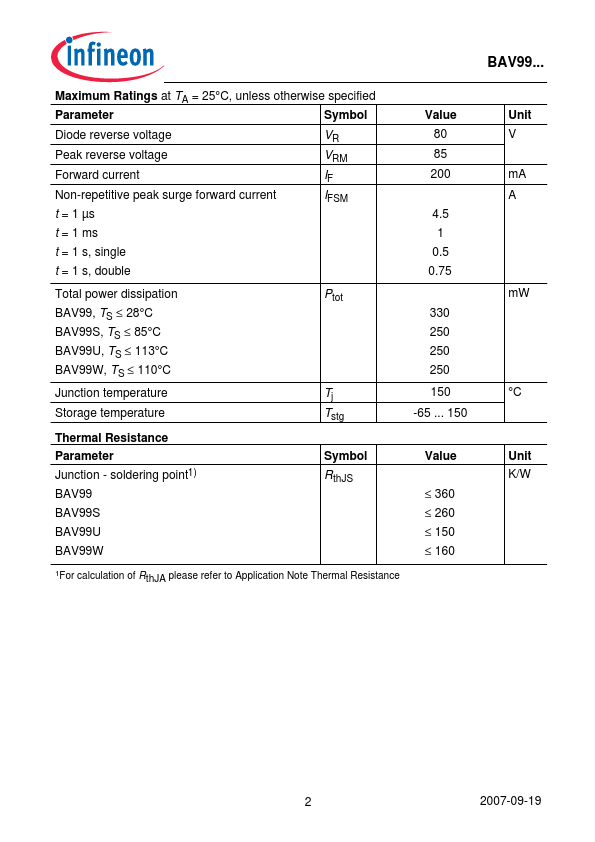

Additional preview pages of the BAV99U datasheet.

📁 Similar Datasheet

BAV99 - Silicon Epitaxial Planar Switching Diodes (Toshiba)
BAV99 - SWITCHING DIODE (SMC Diode)
BAV99 - Small Signal Switching Diode (Vishay)
BAV99 - SMD Small Signal Diodes (Diotec)
BAV99 - 200mA 70V High Conductance Ultra-Fast Switching Diode (ON Semiconductor)
BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
BAV99 - HIGH CONDUCTANCE ULTRA FAST DIODE (UTC)
BAV99 - Diodes (Multicomp)
BAV99 - Switching diode (Rohm)

Other Datasheets by Infineon

BAV99 - Silicon Switching Diode
BAV99S - Silicon Switching Diode
BAV99W - Silicon Switching Diode
BAV70 - Silicon Switching Diode
BAV70W - Silicon Switching Diode

Full PDF Text Transcription

Click to expand full text

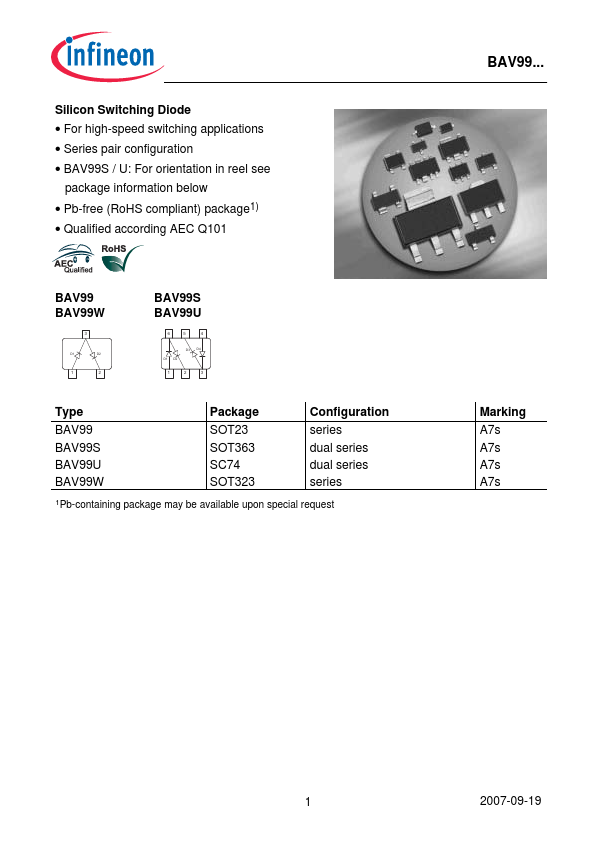

Silicon Switching Diode • For high-speed switching applications • Series pair configuration • BAV99S / U: For orientation in reel see package information below • Pb-free (RoHS compliant) package1) • Qualified according AEC Q101 BAV99 BAV99W ! , , BAV99S BAV99U $ # " , , ,! ," ! Type BAV99 BAV99S BAV99U BAV99W Package SOT23 SOT363 SC74 SOT323 Configuration series dual series dual series series 1Pb-containing package may be available upon special request BAV99... Marking A7s A7s A7s A7s 1 2007-09-19 BAV99...
