BCR430U

Low Drop LED Driver

BCR430U General Description

BCR430U is a linear LED driver IC in a small PG-SOT23-6 package regulating the LED current in standalone operation without any external power transistor. The IC supply voltage range is from 6 V up to 42 V. The LED current level can be adjusted up to 100 mA connecting a high ohmic resistor Rset to pi.

BCR430U Datasheet (270.93 KB)

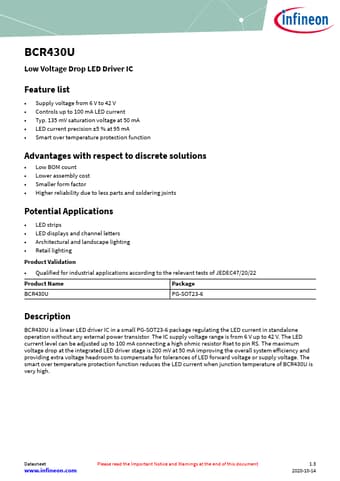

Preview of BCR430U PDF

Datasheet Details

Part number:

BCR430U

Manufacturer:

Infineon ↗

File Size:

270.93 KB

Description:

Low drop led driver.
