BSC070N10NS5 Datasheet - Infineon

BSC070N10NS5, MOSFET

BSC070N10NS5 MOSFET OptiMOSTM5 Power-Transistor, 100 V .

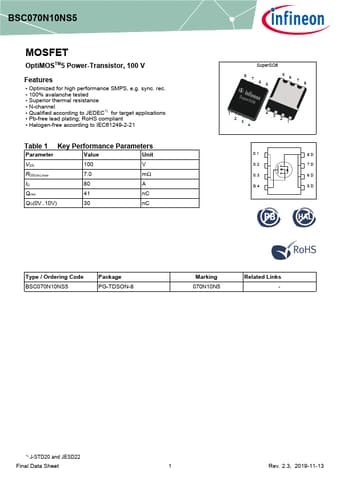

datasheet Preview Page 1 from Datasheet4u.com

BSC070N10NS5-Infineon.pdf

BSC070N10NS5 Datasheet Preview — Preview of BSC070N10NS5 PDF

Datasheet Details

Part number:

BSC070N10NS5

Manufacturer:

Infineon ↗

File Size:

1.29 MB

Description:

MOSFET

Features

* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel

Applications

* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 7.0 mΩ ID 80 A Qoss 41 nC QG(0V. .10V) 30 nC SuperSO8 8 7 65 56 78 1 23 4 4321 S1 8D S2 7D S3 6D G4 5
