BSC074N15NS5, 150V MOSFET

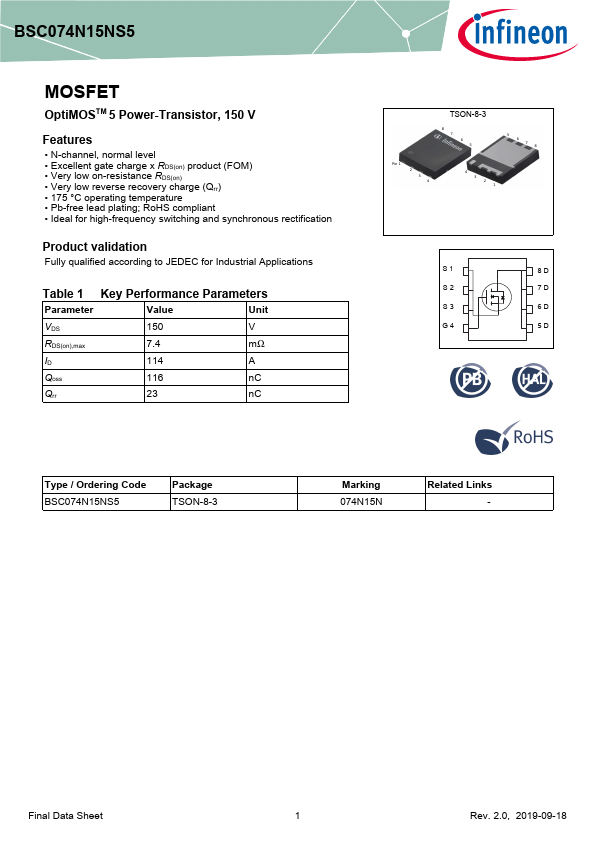

BSC074N15NS5 MOSFET OptiMOSTM 5 Power-Transistor, 150 V .

datasheet Preview Page 1 from Datasheet4u.com

BSC074N15NS5-Infineon.pdf

BSC074N15NS5 Datasheet Preview — Preview of BSC074N15NS5 PDF

Datasheet Details

Part number:

BSC074N15NS5

Manufacturer:

Infineon ↗

File Size:

971.51 KB

Description:

150V MOSFET

Features

* N-channel, normal level
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* Very low reverse recovery charge (Qrr)
* 175 °C operating temperature
* Pb-free lead plating; RoHS compliant
* Ideal for high-frequency

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 150 V RDS(on),max 7.4 mΩ ID 114 A Qoss 116 nC Qrr 23 nC TSON-8-3 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 S1 8D S2 7D S3 6D G4 5D Type / Ordering Code BSC074N15NS5 Package TSON-8-3 Marking 074N15N Relate
