BSC072N08NS5, MOSFET

BSC072N08NS5 MOSFET OptiMOSTM5 Power-Transistor, 80 V .

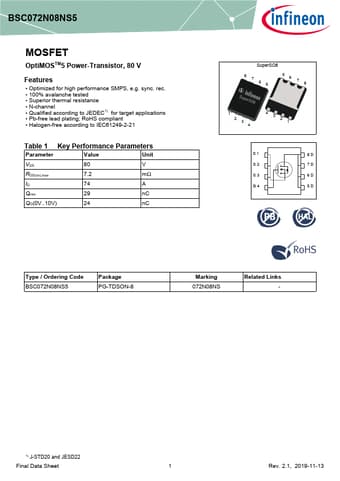

datasheet Preview Page 1 from Datasheet4u.com

BSC072N08NS5-Infineon.pdf

BSC072N08NS5 Datasheet Preview — Preview of BSC072N08NS5 PDF

Datasheet Details

Part number:

BSC072N08NS5

Manufacturer:

Infineon ↗

File Size:

1.27 MB

Description:

MOSFET

Features

* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel

Applications

* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 7.2 mΩ ID 74 A Qoss 29 nC QG(0V. .10V) 24 nC SuperSO8 8 7 65 56 78 1 23 4 4321 S1 8D S2 7D S3 6D G4 5
