BSZ010NE2LS5 25V MOSFET

Infineon

Description

BSZ010NE2LS5 MOSFET OptiMOSTM 5 Power-Transistor, 25 V .

📥 Download Datasheet

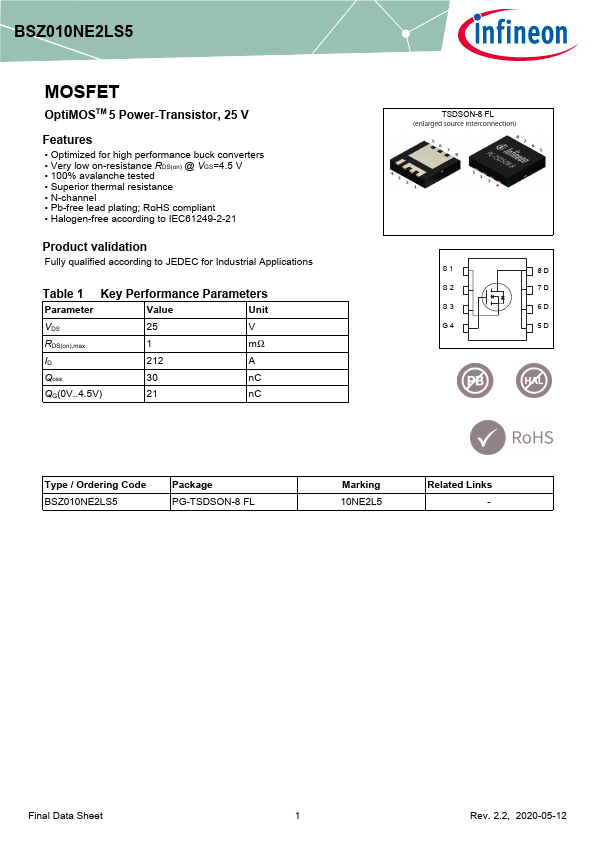

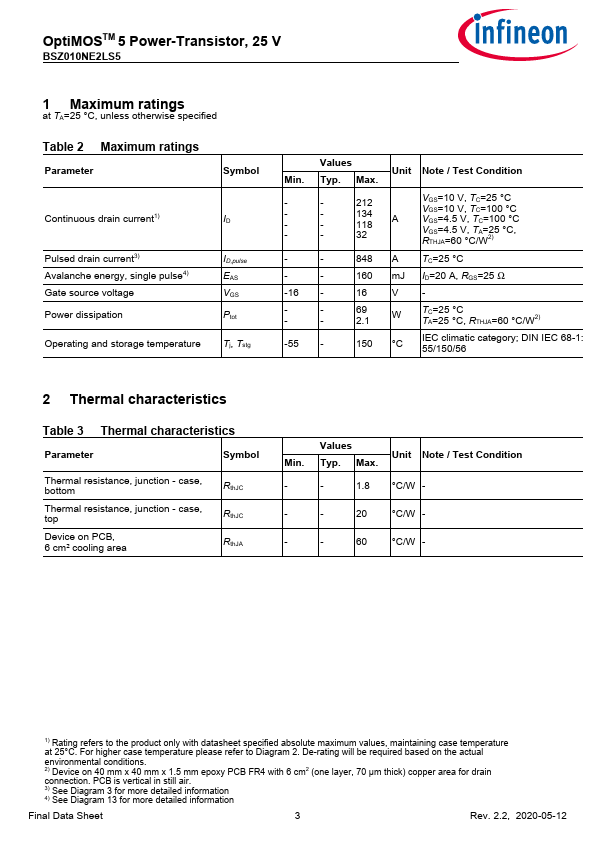

BSZ010NE2LS5 Datasheet Preview — Preview of BSZ010NE2LS5 PDF

Datasheet Specifications

Part number: BSZ010NE2LS5
Manufacturer: Infineon ↗
File Size: 1.04 MB
Datasheet: BSZ010NE2LS5-Infineon.pdf
Description: 25V MOSFET

Features

* Optimized for high performance buck converters
* Very low on-resistance RDS(on) @ VGS=4.5 V
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Pro

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 25 V RDS(on),max 1 mΩ ID 212 A Qoss 30 nC QG(0V. .4.5V) 21 nC TSDSON-8 FL (enlarged source interconnection) S1 8D S2 7D S3 6D G4 5D Type / Ordering Code BSZ010NE2LS5 Package PG-TSDSON-8 FL Marking 10NE2L5
