BSZ0602LS MOSFET

Infineon

Description

BSZ0602LS MOSFET OptiMOSª5 Power-Transistor, 80 V .

📥 Download Datasheet

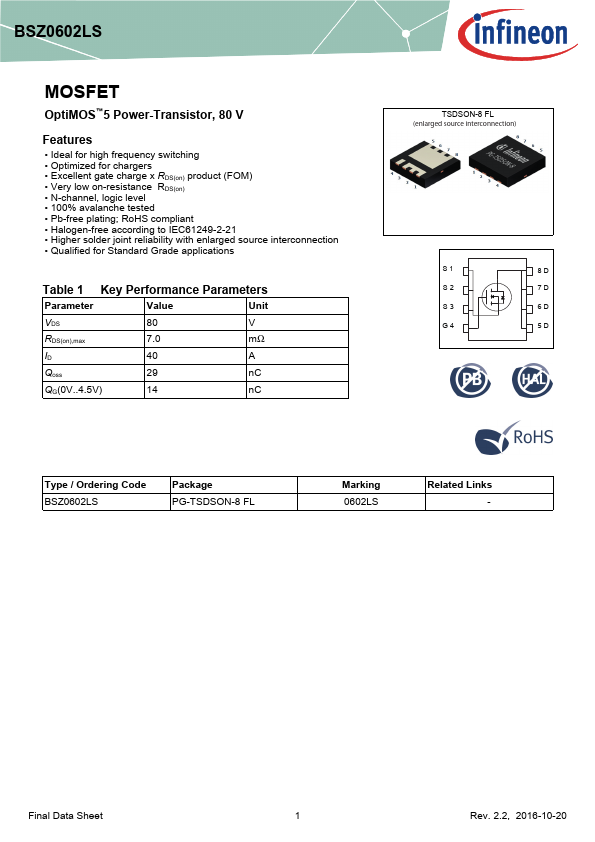

BSZ0602LS Datasheet Preview — Preview of BSZ0602LS PDF

Datasheet Specifications

Part number: BSZ0602LS
Manufacturer: Infineon ↗
File Size: 1.40 MB
Datasheet: BSZ0602LS-Infineon.pdf
Description: MOSFET

Features

* Ideal for high frequency switching
* Optimized for chargers
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, logic level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Halogen

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 7.0 mΩ ID 40 A Qoss 29 nC QG(0V. .4.5V) 14 nC TSDSON-8 FL (enlarged source interconnection) S1 8D S2 7D S3 6D G4 5D Type / Ordering Code BSZ0602LS Package PG-TSDSON-8 FL Marking 0602LS Rel
