BTF3050EJ - Smart Low-Side Power Switch

Infineon

📥 Download Datasheet

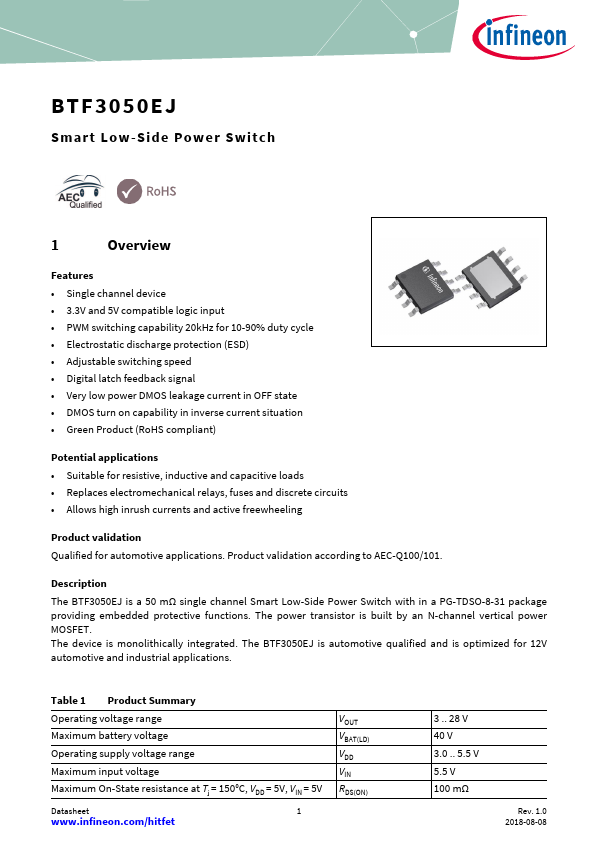

BTF3050EJ Datasheet Preview — Preview of BTF3050EJ PDF

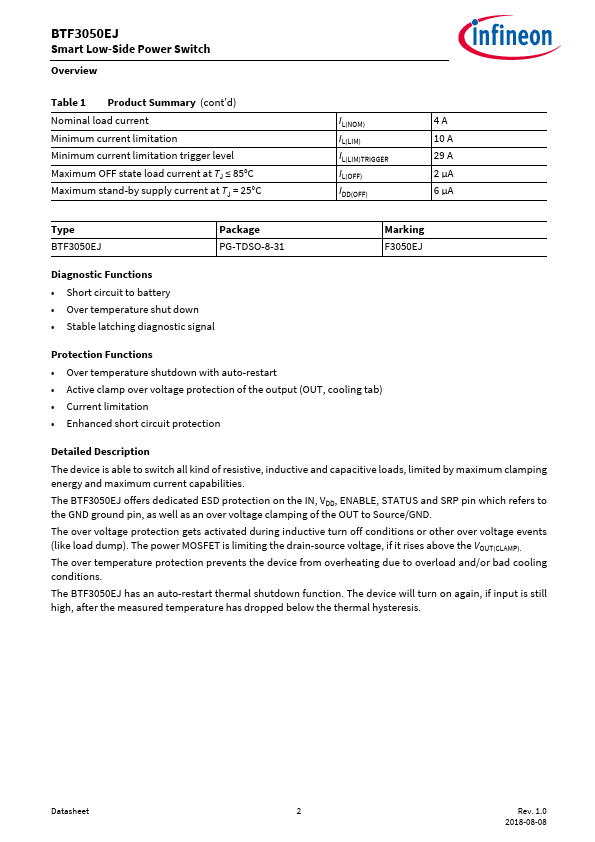

datasheet Preview Page 2

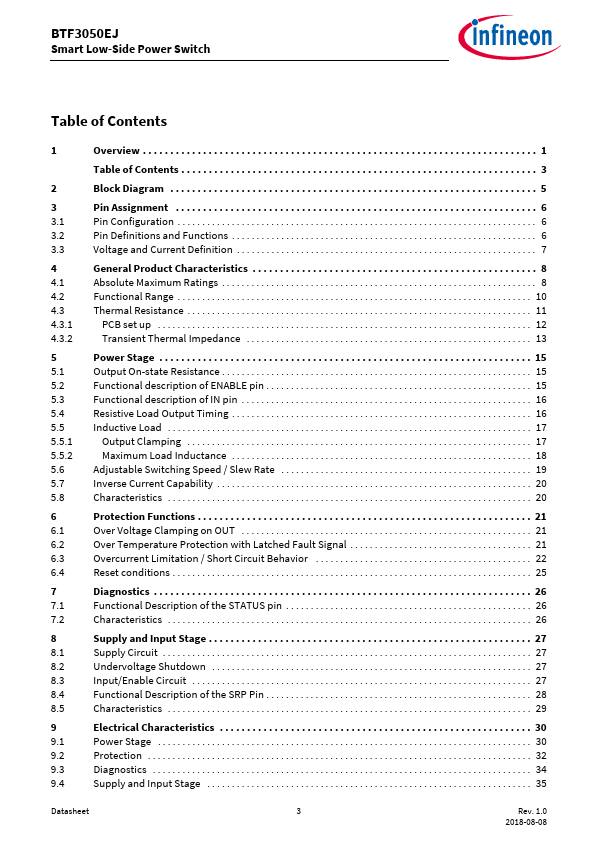

datasheet Preview Page 3

Datasheet Details

Part number	BTF3050EJ
Manufacturer	Infineon ↗
File Size	3.39 MB
Description	Smart Low-Side Power Switch
Datasheet	BTF3050EJ-Infineon.pdf

BTF3050EJ Product details

Description

The BTF3050EJ is a 50 mΩ single channel Smart Low-Side Power Switch with in a PG-TDSO-8-31 package providing embedded protective functions.

Features

Single channel device.
3.3V and 5V compatible logic input.
PWM switching capability 20kHz for 10-90% duty cycle.
Electrostatic discharge protection (ESD).
Adjustable switching speed.
Digital latch feedback signal.
Very low power DMOS leakage current in OFF state.
DMOS turn on capability in inverse current situation.
Green Product (RoHS compliant) Potential.
