BTF3080EJ - Smart Low-Side Power Switch

Datasheet Summary

Description

The BTF3080EJ is a 80 mΩ single channel Smart Low-Side Power Switch with in a PG-TDSO-8-31 package providing embedded protective functions.

The power transistor is built by an N-channel vertical power MOSFET.

The device is monolithically integrated.

Features

  • Single channel device.
  • 3.3V and 5V compatible logic input.
  • PWM switching capability 20kHz for 10-90% duty cycle.
  • Electrostatic discharge protection (ESD).
  • Adjustable switching speed.
  • Digital latch feedback signal.
  • Very low power DMOS leakage current in OFF state.
  • DMOS turn on capability in inverse current situation.
  • Green Product (RoHS compliant) Potential.

📥 Download Datasheet

Datasheet preview – BTF3080EJ

Datasheet Details

Part number BTF3080EJ
Manufacturer Infineon
File Size 2.64 MB
Description Smart Low-Side Power Switch
Datasheet download datasheet BTF3080EJ Datasheet
Additional preview pages of the BTF3080EJ datasheet.

📁 Similar Datasheet

Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

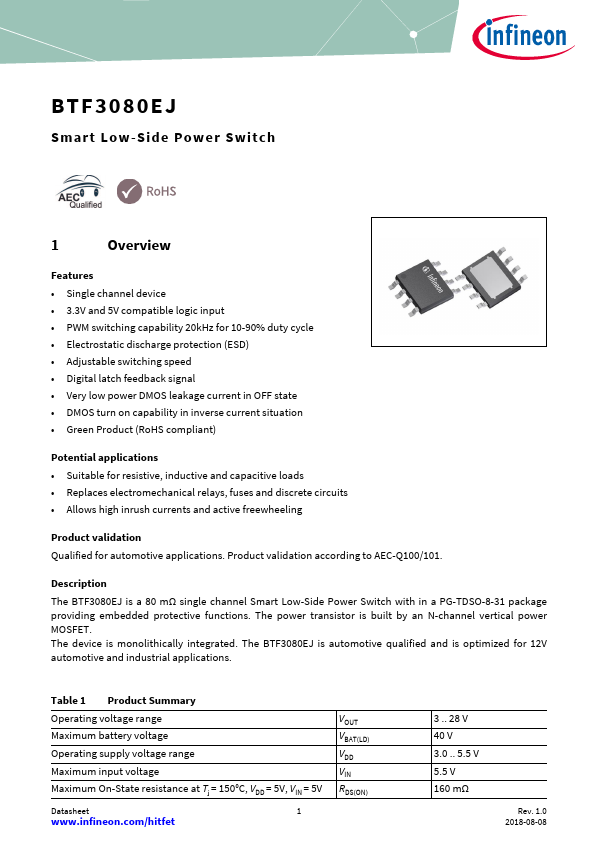

BTF3080EJ Smart Low-Side Power Switch 1 Overview Features • Single channel device • 3.3V and 5V compatible logic input • PWM switching capability 20kHz for 10-90% duty cycle • Electrostatic discharge protection (ESD) • Adjustable switching speed • Digital latch feedback signal • Very low power DMOS leakage current in OFF state • DMOS turn on capability in inverse current situation • Green Product (RoHS compliant) Potential applications • Suitable for resistive, inductive and capacitive loads • Replaces electromechanical relays, fuses and discrete circuits • Allows high inrush currents and active freewheeling Product validation Qualified for automotive applications. Product validation according to AEC-Q100/101.
