BTN7030-1EPA - Lite-smart integrated half-bridge

Infineon

BTN7030-1EPA Datasheet Preview — Preview of BTN7030-1EPA PDF

Datasheet Details

Part number	BTN7030-1EPA
Manufacturer	Infineon ↗
File Size	2.43 MB
Description	Lite-smart integrated half-bridge
Datasheet	BTN7030-1EPA-Infineonpdf

BTN7030-1EPA Product details

Description

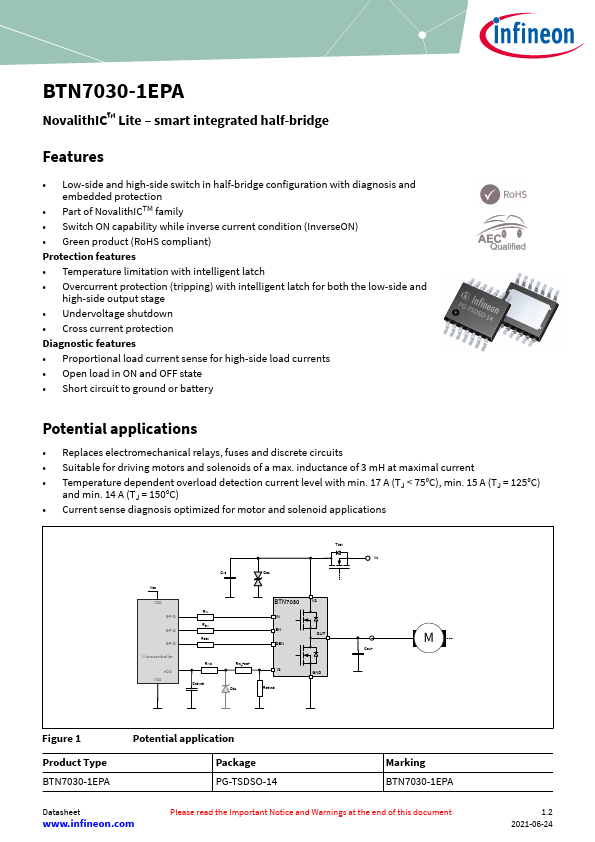

Description The BTN7030-1EPA is a protected half-bridge with integrated driver, providing protection and diagnosis functions.The device is integrated in SMART7 technology.Table 1 Product Summary Parameter Minimum operating voltage (at switch ON) Minimum operating voltage (cranking) Maximum operating voltage Minimum overvoltage protection (TJ ≥ 25°C) Maximum current in sleep mode (TJ ≤ 85°C) Maximum operative current Maximum ON-state resistance (TJ = 150°C) high-side Maximum ON-state resis

Features

Low-side and high-side switch in half-bridge configuration with diagnosis and embedded protection.
Part of NovalithICTM family.
Switch ON capability while inverse current condition (InverseON).
Green product (RoHS compliant) Protection features.
Temperature limitation with intelligent latch.
Overcurrent protection (tripping) with intelligent latch for both the low-side and high-side output stage.
Undervoltage shutdown.
Cros.
