BTT6050-1ERA Smart High-Side Power Switch

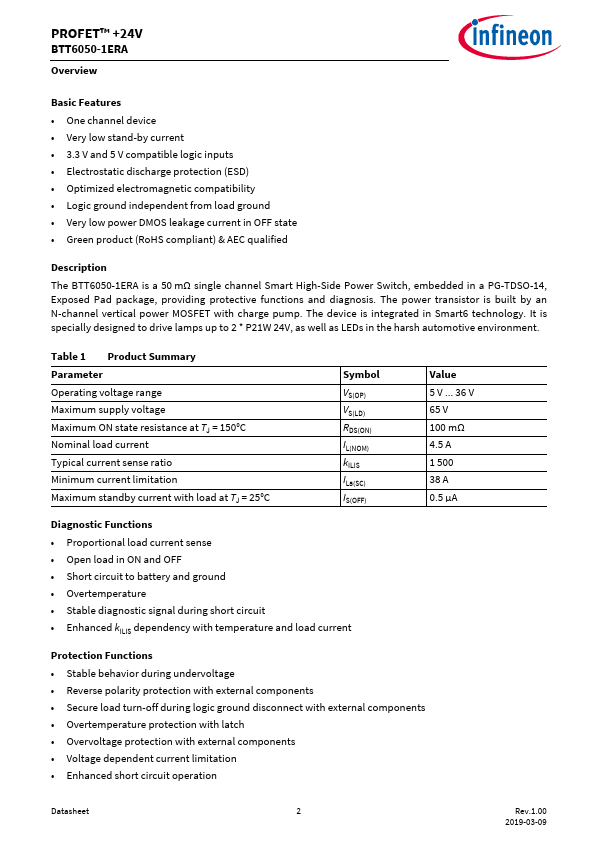

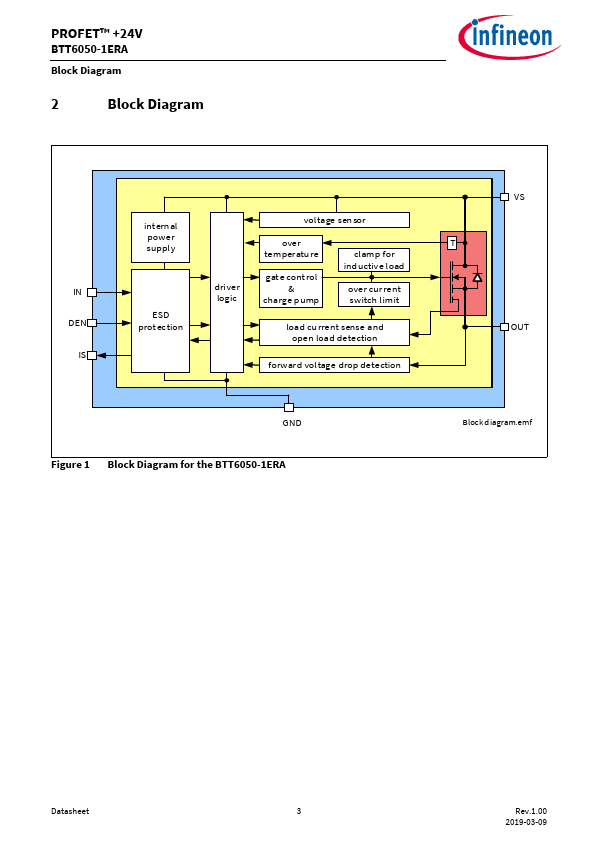

The BTT6050-1ERA is a 50 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. I.

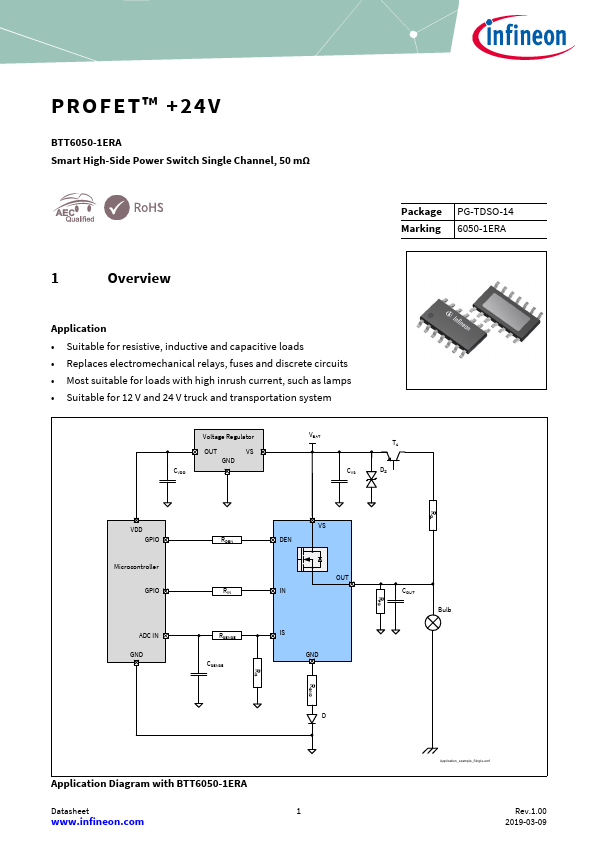

PROFET™ +24V BTT6050-1ERA Smart High-Side Power Switch Single Channel, 50 mΩ Package PG-TDSO-14 Marking 6050-1ERA 1 Overview Application Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Most suitable for loads with high inrush current, such as lamps Suitable for 12 V and 24 V truck and transportation system Voltage Regulator OUT VS GND CVDD VBAT T1 CVS DZ ROL RPD RGND RIS V.

BTT6050-1ERA Features

* One channel device

* Very low stand-by current

* 3.3 V and 5 V compatible logic inputs

* Electrostatic discharge protection (ESD)

* Optimized electromagnetic compatibility

* Logic ground independent from load ground

* Very low power DMOS leak

BTT6050-1ERA Datasheet (884.23 KB)
