BTT6050-2ERA Datasheet - Infineon

BTT6050-2ERA - Smart High-Side Power Switch

The BTT6050-2ERA is a 50 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis.

The power transistor is built by an N-channel vertical power MOSFET with charge pump.

The device is integrated in Smart6 HV technology.

PROFET™+ 24V BTT6050-2ERA Smart High-Side Power Switch Dual Channel, 50 mΩ Package PG-TDSO-14 Marking 6050-2ERA 1 Overview Application Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Most suitable for loads with high inrush current, such as lamps Suitable for 12 V and 24 V Trucks and Transportation System Voltage Regulator OUT VS CVDD GND VBAT T1 CVS Z ROL VDD GPIO GPIO M i

BTT6050-2ERA Features

* Two channel device

* Very low stand-by current

* 3.3 V and 5 V compatible logic inputs

* Electrostatic discharge protection (ESD)

* Optimized electromagnetic compatibility

* Logic ground independent of load ground

* Very low power DMOS leakag

BTT6050-2ERA-Infineon.pdf

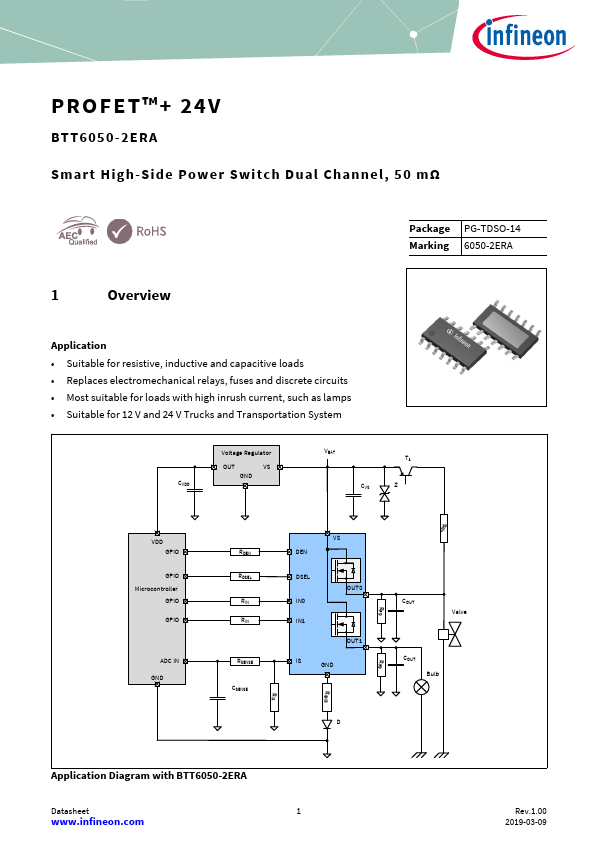

Preview of BTT6050-2ERA PDF

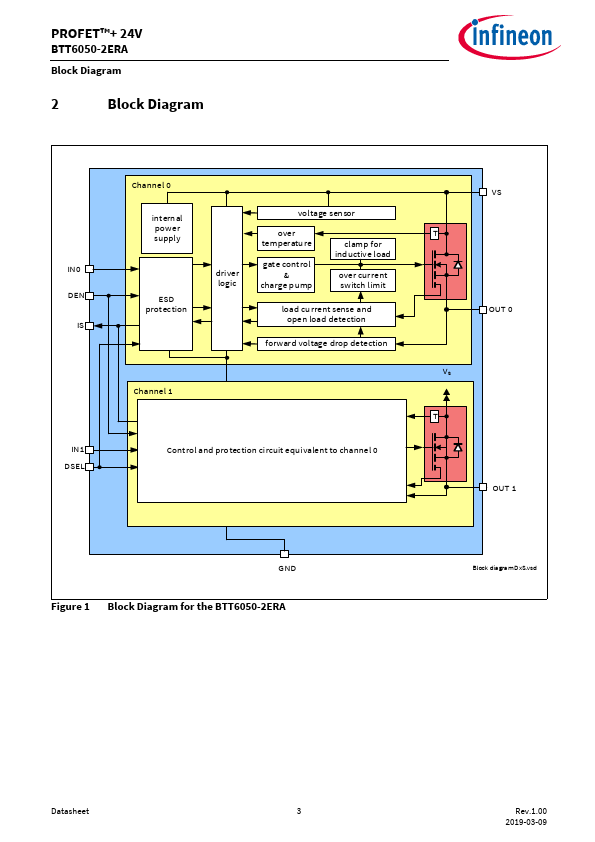

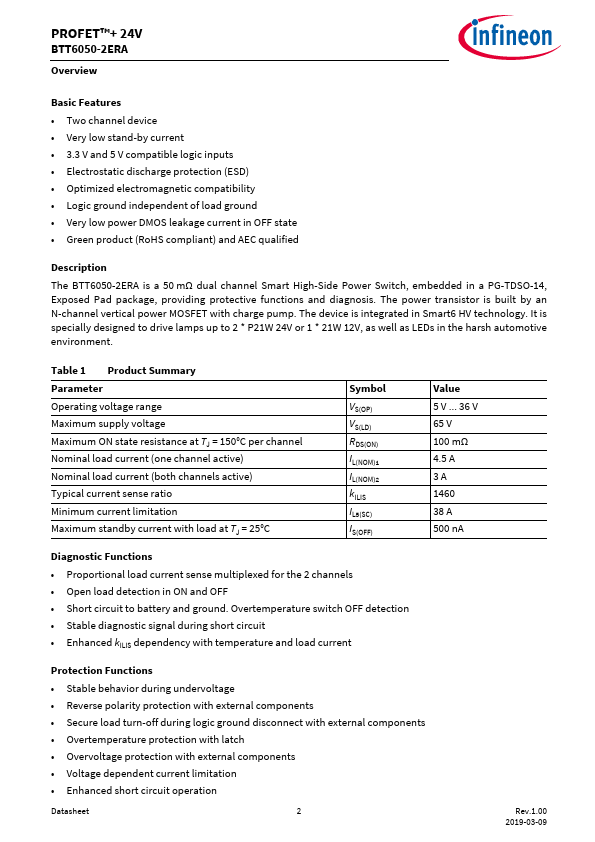

BTT6050-2ERA Datasheet Preview Page 2 BTT6050-2ERA Datasheet Preview Page 3

Datasheet Details

Part number:

BTT6050-2ERA

Manufacturer:

Infineon ↗

File Size:

905.69 KB

Description:

Smart high-side power switch.
