BTT6080-1ERL Datasheet - Infineon

Smart High-Side Power Switch

BTT6080-1ERL Features

* Adjustable current limitation with OCT-pin

* One channel device

* Very low stand-by current

* 3.3 V and 5 V compatible logic inputs

* Electrostatic discharge protection (ESD)

* Optimized electromagnetic compatibility

* Logic ground independen

BTT6080-1ERL General Description

The BTT6080-1ERL is a 80 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device offers an adjustable current limitati.

BTT6080-1ERL Datasheet (923.65 KB)

Preview of BTT6080-1ERL PDF

Datasheet Details

Part number:

BTT6080-1ERL

Manufacturer:

Infineon ↗

File Size:

923.65 KB

Description:

Smart high-side power switch.

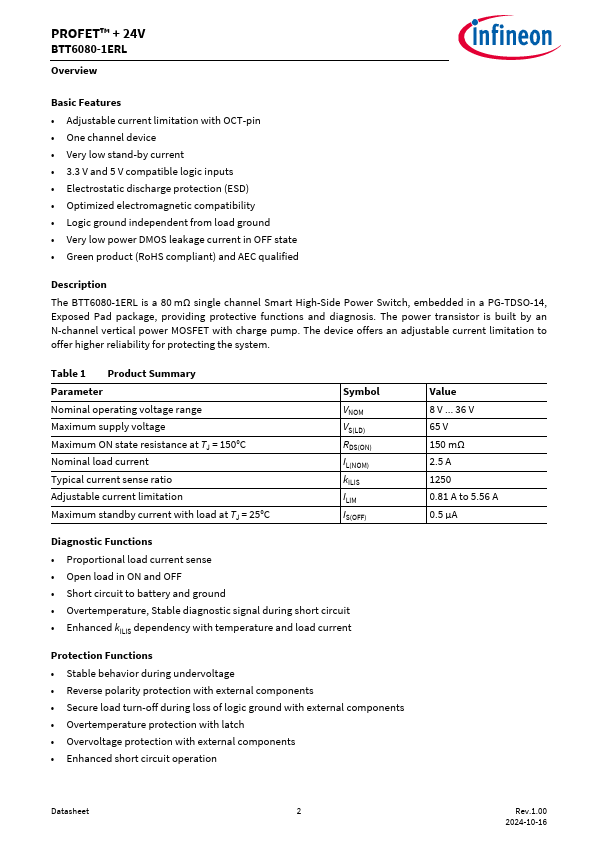

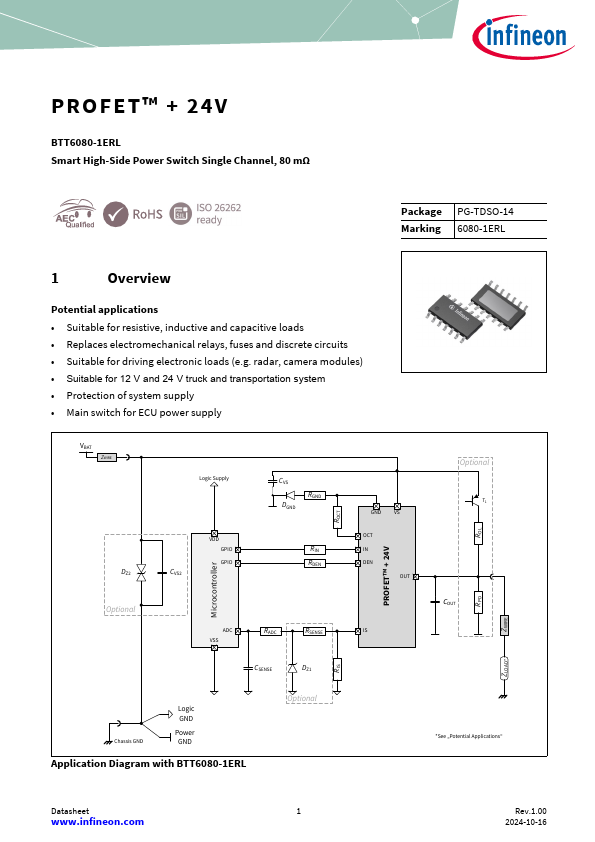

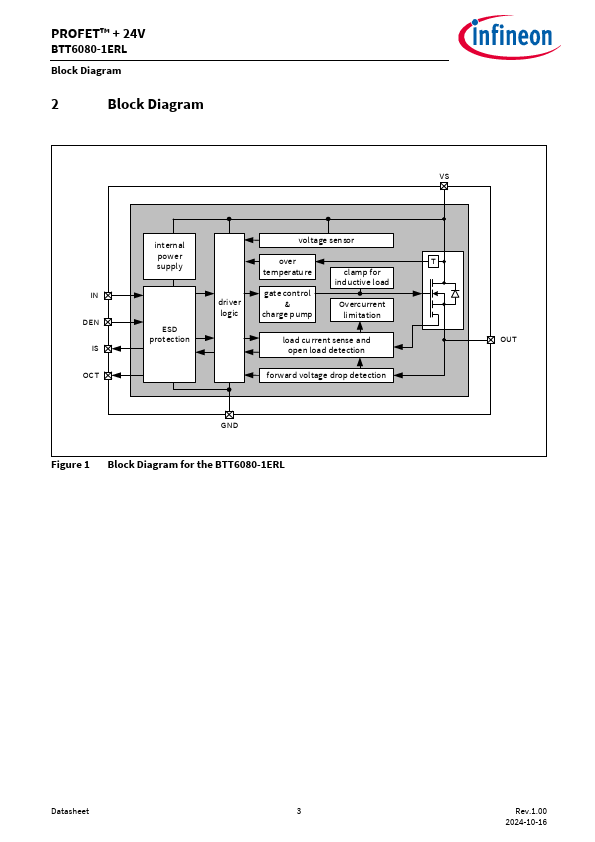

PROFET™ + 24V BTT6080-1ERL Smart High-Side Power Switch Single Channel, 80 mΩ Package PG-TDSO-14 Marking 6080-1ERL 1 Overview Potential applicatio.
