CY8C4146AZI-S443, CY8C4126AXI-S443 Datasheet - Infineon

CY8C4146AZI-S443 4100S Plus MCU

PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. PSoC™ 4100S Plus is a member of the PSoC™ 4 pla.

CY8C4146AZI-S443 Features

* 32-bit MCU subsystem - 48 MHz Arm® Cortex®-M0+ CPU with single-cycle multiply - Up to 128 KB of flash with read accelerator - Up to 16 KB of SRAM - 8-channel DMA engine

* Programmable analog - Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and

CY8C4126AXI-S443-Infineon.pdf

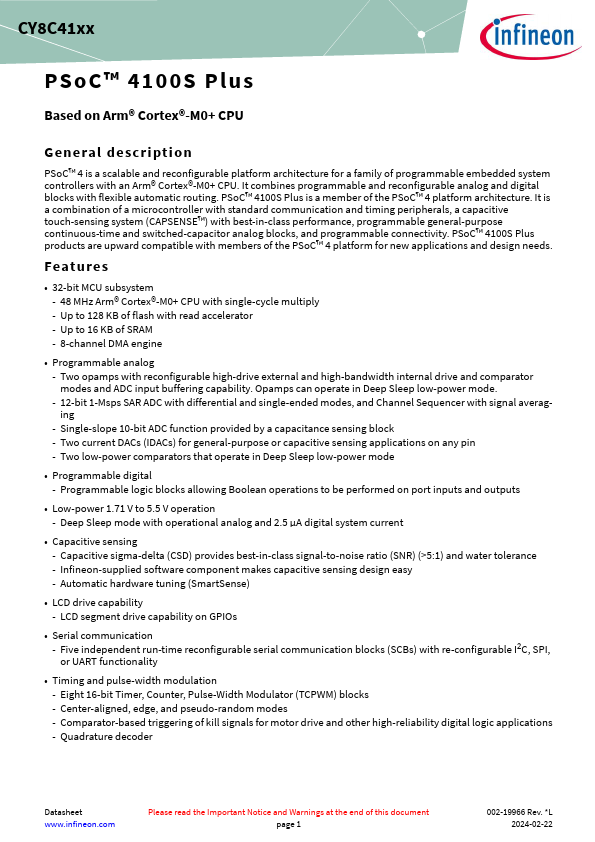

CY8C4146AZI-S443 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY8C4146AZI-S443, CY8C4126AXI-S443. Please refer to the document for exact specifications by model.

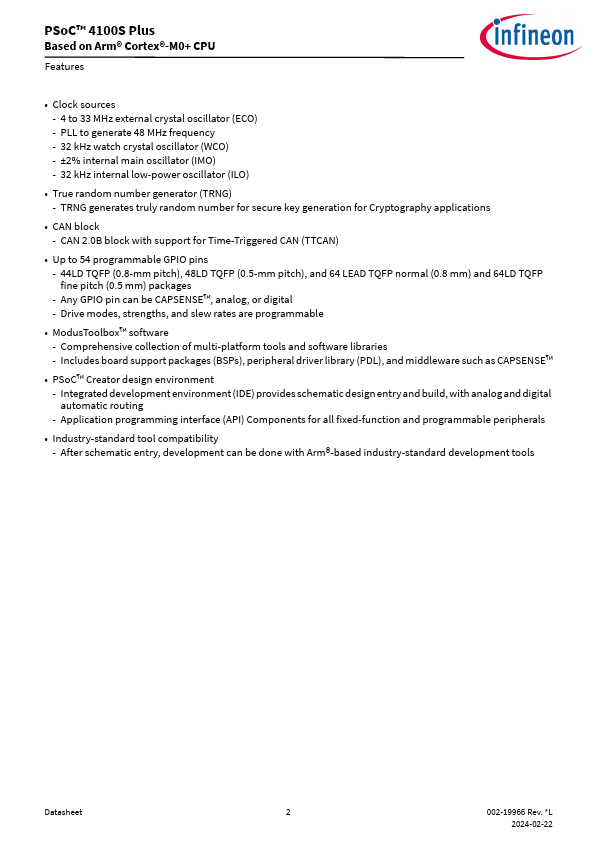

CY8C4146AZI-S443 Datasheet Preview Page 2

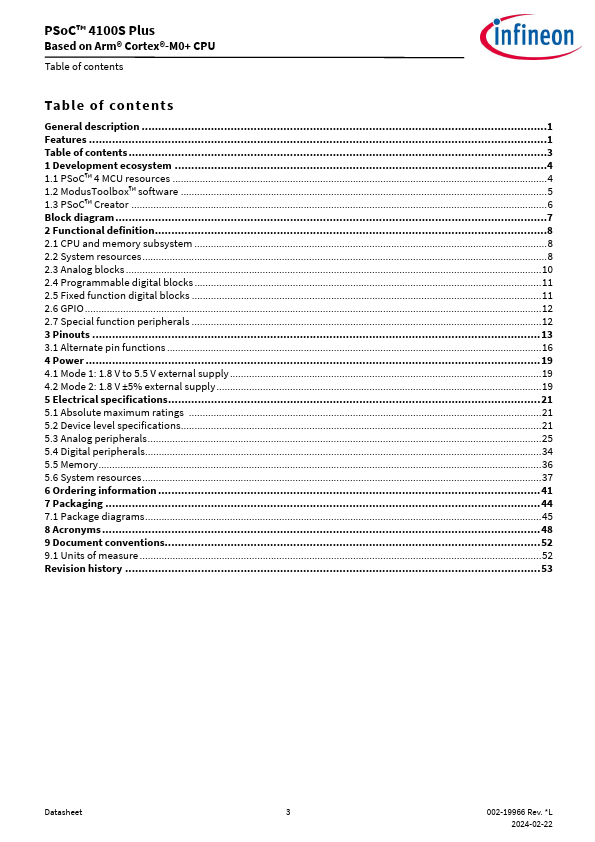

CY8C4146AZI-S443 Datasheet Preview Page 3

Datasheet Details

Part number:

CY8C4146AZI-S443, CY8C4126AXI-S443

Manufacturer:

Infineon ↗

File Size:

784.64 KB

Description:

4100s plus mcu.

Note:

This datasheet PDF includes multiple part numbers: CY8C4146AZI-S443, CY8C4126AXI-S443.
Please refer to the document for exact specifications by model.
