CYEL17B512 Datasheet - Infineon

CYEL17B512 512Mb radiation tolerant NOR flash

The CYEL17B family devices are flash non-volatile memory products using: * Silicon-Oxide-Nitride-Oxide-Silicon (SONOS) charge trap gate technology * 40-nm process lithography The CYEL17B family connects to a host system via a Serial Peripheral Interface (SPI). Traditional SPI single-.

CYEL17B512 Features

* a page programming buffer that allows up to 2 KB to be programmed in one operation and provides individual 1 MB sector, 8 MB block, or entire 64 MB chip erase. By using CYEL17B family devices at the higher clock rates supported, with Quad commands, the instruction read transfer rate can match or exc

CYEL17B512 Datasheet (1.16 MB)

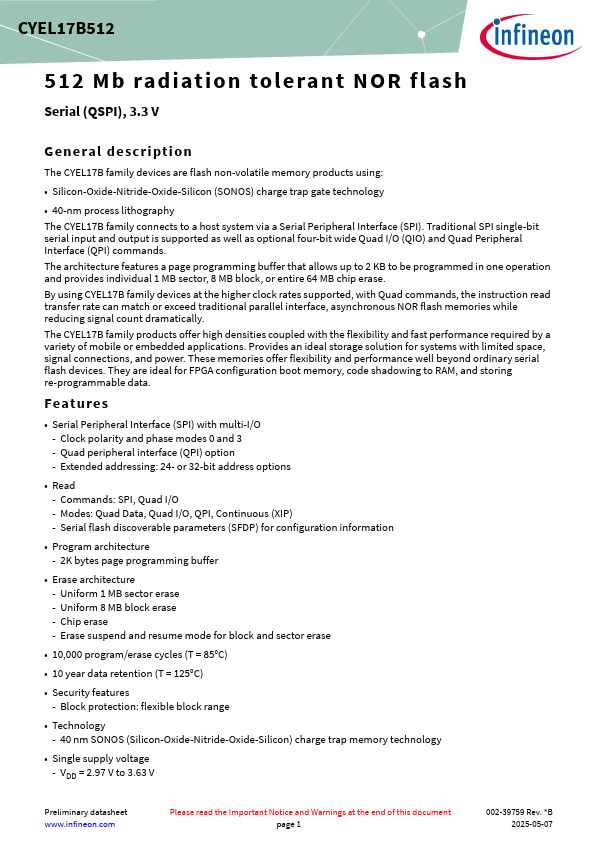

Preview of CYEL17B512 PDF

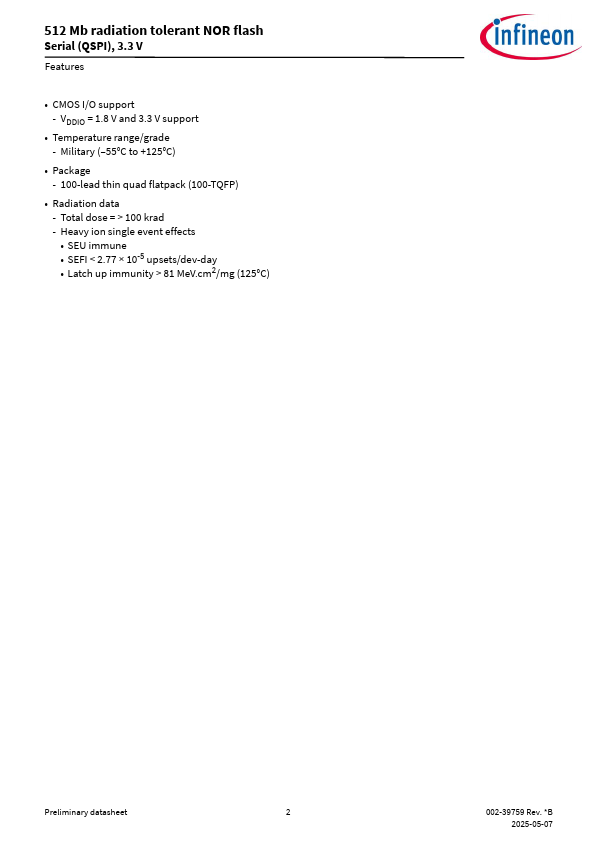

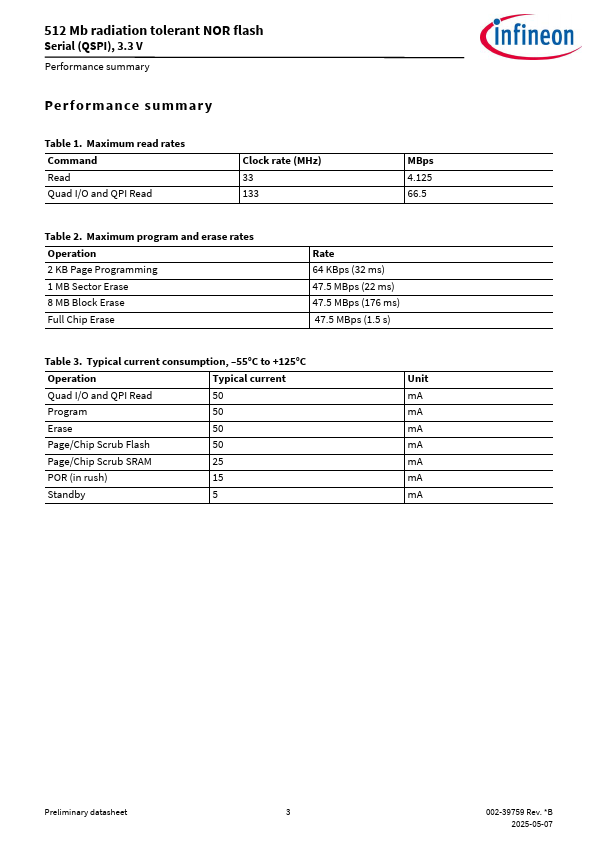

CYEL17B512 Datasheet Preview Page 2 CYEL17B512 Datasheet Preview Page 3

Datasheet Details

Part number:

CYEL17B512

Manufacturer:

Infineon ↗

File Size:

1.16 MB

Description:

512mb radiation tolerant nor flash.
