CYPD7272, CYPD7271 Datasheet - Infineon

CYPD7272 CCG7DC dual-port USB-C power delivery and DC-DC controller

EZ-PD™ CCG7DC is Infineon highly integrated dual-port USB Type-C power delivery (PD) solution with integrated buck-boost controllers. It complies to the latest USB Type-C and PD specifications, and is targeted for multi-port consumer charging applications. Integration offered by EZ-PD™ CCG7DC not on.

CYPD7272 Features

* on the VBUS. EZ-PD™ CCG7DC supports a wide input voltage range (4 V to 24 V with 40 V tolerance) and programmable switching frequency (150 kHz to 600 kHz) in an integrated PD solution. EZ-PD™ CCG7DC is the most programmable USB-PD solution with on-chip 32-bit Arm® Cortex®-M0 processor, 128-KB flash,

CYPD7271-Infineon.pdf

This datasheet PDF includes multiple part numbers: CYPD7272, CYPD7271. Please refer to the document for exact specifications by model.

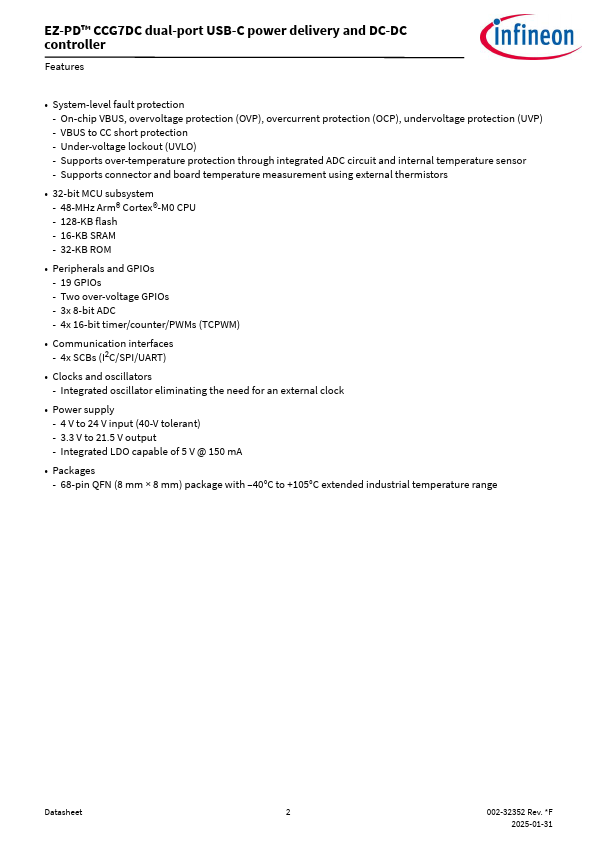

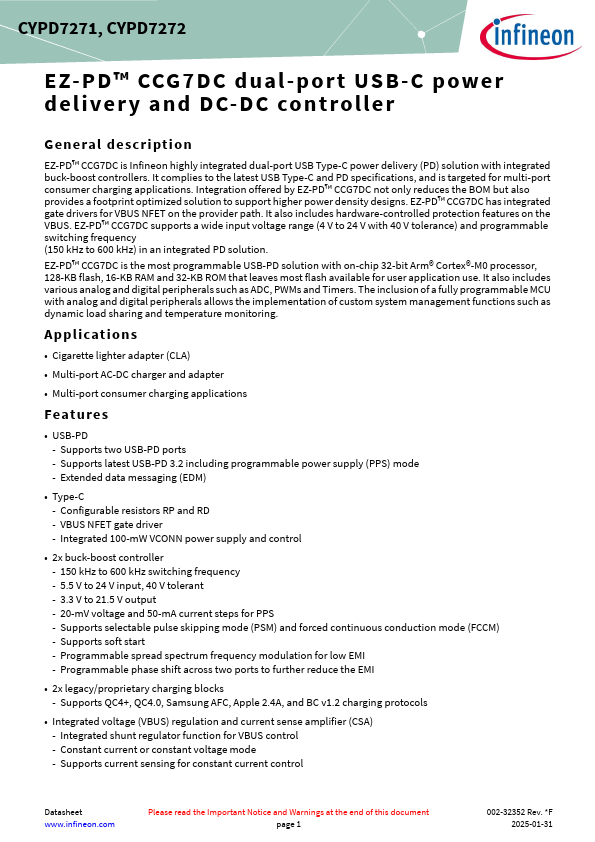

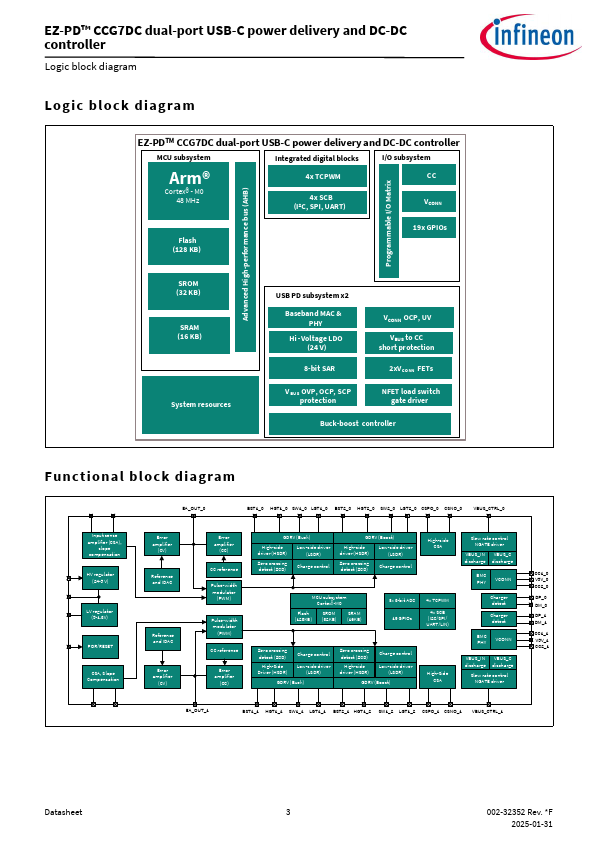

CYPD7272 Datasheet Preview Page 2 CYPD7272 Datasheet Preview Page 3

Datasheet Details

Part number:

CYPD7272, CYPD7271

Manufacturer:

Infineon ↗

File Size:

459.26 KB

Description:

Ccg7dc dual-port usb-c power delivery and dc-dc controller.

Note:

This datasheet PDF includes multiple part numbers: CYPD7272, CYPD7271.
Please refer to the document for exact specifications by model.
