ESD105-B1-02ELS TVS Diode

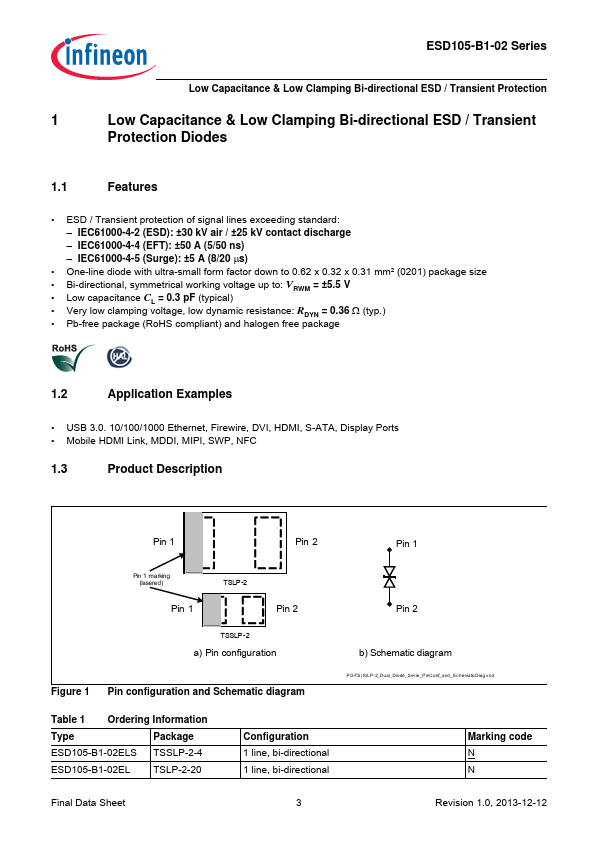

Pin 1 Pin 2 Pin 1 Pin 1 marking (lasered) TSLP -2 Pin 1 Pin 2 Pin 2 TSSLP - 2 a) Pin configuration Figure 1 Pin configuration and Schematic diagram b) Schematic diagram P G-TS (S)LP -2_Dual_Diode_S erie_P inConf_and_S c hematic Diag. v s d Table 1 Ordering Information Type Package ESD1.

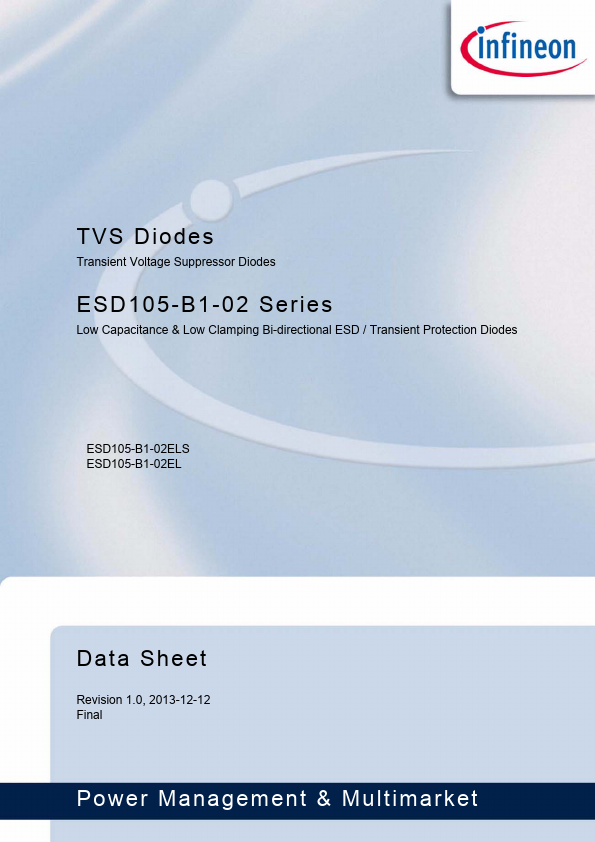

TVS Diodes Transient Voltage Suppressor Diodes ESD105-B1-02 Series Low Capacitance & Low Clamping Bi-directional ESD / Transient Protection Diodes ESD105-B1-02ELS ESD105-B1-02EL Data Sheet Revision 1.0, 2013-12-12 Final Power Management & Multimarket ESD105-B1-02 Series Revision History: Rev. 04, 2013-09-24 Page or Item Subjects (major changes since previous revision) Revision 1.0, 2013-12-12 All Status change to Final Trademarks of Infineon Technologies AG AURIX™, BlueMoon™, COMNEON™, C1.

ESD105-B1-02ELS Features

* ESD / Transient protection of signal lines exceeding standard:

* IEC61000-4-2 (ESD): ±30 kV air / ±25 kV contact discharge

* IEC61000-4-4 (EFT): ±50 A (5/50 ns)

* IEC61000-4-5 (Surge): ±5 A (8/20 μs)

* One-line diode with ultra-small form factor down to 0.6
