 ESD111-B1-W0201 Datasheet
|
|
|
| Part number | ESD111-B1-W0201 |
|---|---|
| Manufacturer | Infineon |
| File Size | 495.24 KB |
| Description | ESD protection device |
| Datasheet |
ESD111-B1-W0201 Datasheet
|
|
|
|

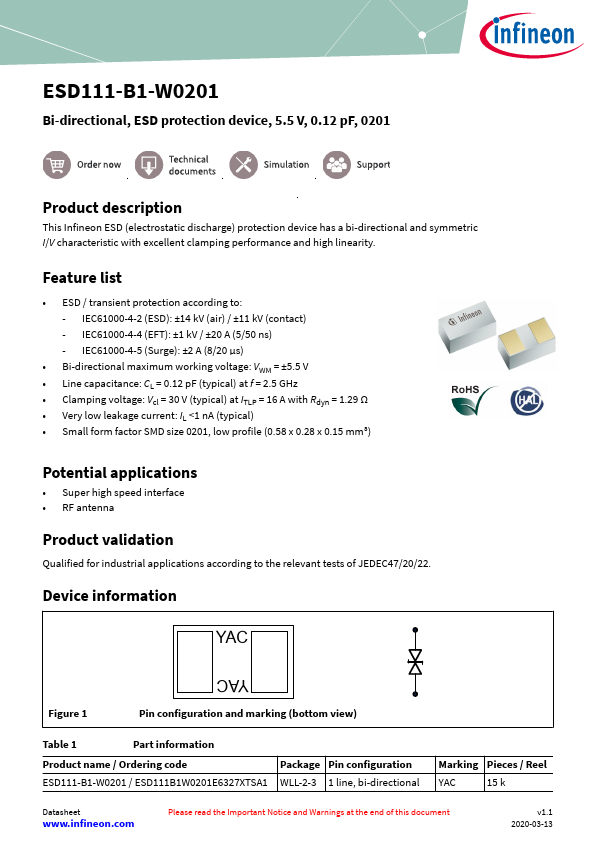

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic with excellent clamping performance and high linearity. ESD / transient protection according to: - IEC61000-4-2 (ESD): ±14 kV (air) / ±11 kV (contact) - IEC61000-4-4 (EFT): ±1 kV / ±20 A (5/50 ns) - IEC61000-4-5 (Surge): ±2 A (8/20 μs) Bi-directional maximum working voltage: VWM = ±5.5 V Line capacitance: CL = 0.12 pF (typical) at f = 2.5
