ESD205-B1

Protection Device

ESD205-B1 Features

* ESD / transient protection of signal lines in low voltage applications according to:

* IEC61000-4-2 (ESD): ±20 kV (air / contact)

* IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns)

* IEC61000-4-5 (Surge): ±2.5 A (8/20 μs)

* Bi-directional, working voltage up to

ESD205-B1 General Description

Pin 1 marking ( la se r e d) Pin 1 Pin 2 Figure 1-1 Pin Configuration and Schematic Diagram Table 1-1 Ordering Information Type Package ESD205-B1-02ELS TSSLP-2-3 ESD205-B1-02EL TSLP-2-19 Configuration 1 line, bi-directional 1 line, bi-directional Pin 1 Pin 2 PinConf_and_SchematicDiag.vsd M.

ESD205-B1 Datasheet (761.91 KB)

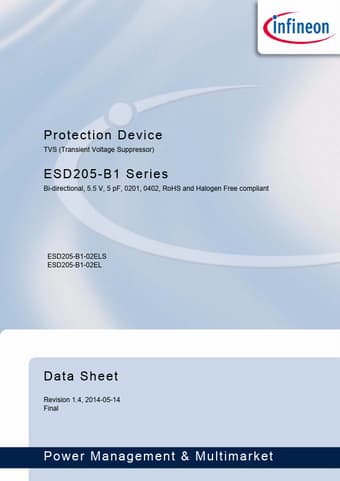

Preview of ESD205-B1 PDF

Datasheet Details

Part number:

ESD205-B1

Manufacturer:

Infineon ↗

File Size:

761.91 KB

Description:

Protection device.
Protection Device TVS (Transient Voltage Suppressor) ESD205-B1 Series Bi-directional, 5.5 V, 5 pF, 0201, 0402, RoHS and Halogen Free compliant ESD205-.
