ESD200-B1-CSP0201 - TVS Diode

ESD200-B1-CSP0201 Description

TVS Diode Transient Voltage Suppressor Diodes ESD200-B1-CSP0201 Low Clamping Voltage TVS Diode in a Thin 0201 Chip Scale Package ESD200-B1-CSP0201 Dat.
a) Pin configuration top view b) Schematic diagram Configuration _Schematic_Diagram.

ESD200-B1-CSP0201 Features

* ESD / Transient protection of susceptible I/O lines to:
* IEC61000-4-2 (ESD): ±16 kV (air/contact discharge)
* IEC61000-4-5 (surge): ±3 A (8/20 μs))
* Low clamping voltage
* Low dynamic resistance: RDYN ≤ 0.2 Ω typ.

ESD200-B1-CSP0201 Applications

* with signal voltage between -5.5 V and 5.5 V max.
* Line capacitance: CL = 6.5 pF
* Minimized overshoot due to extremely low parasitic inductance of chip scale package
* Miniature form factor (XY) = 0201 (0.58 mm x 0.28 mm)
* Thin 0.15 mm package thickness to allow di

📥 Download Datasheet

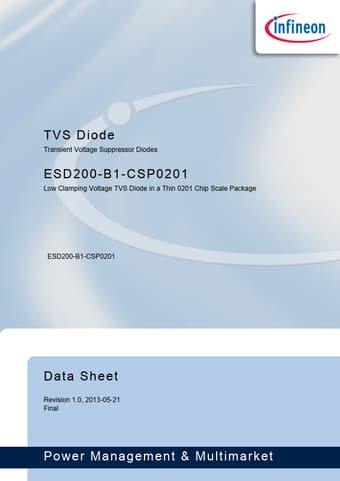

Preview of ESD200-B1-CSP0201 PDF
