ESD24V52D-A, ESD3.3V52D-A Datasheet - QYsemi

ESD24V52D-A UNIDIRECTIONAL TVS DIODE

ESD24V52D-A Features

* 120 Watts Peak Pulse Power per Line (tp=8/20µs)

* Protects one I/O line

* Low clamping voltage

* Working voltages : 3.3V, 5V, 8V, 12V, 15V and 24V

* Low leakage current MECHANICAL CHARACTERISTICS

* SOD-523 Package

* Molding Compound Flammability Rating : UL 94V-O

ESD3.3V52D-A-QYsemi.pdf

This datasheet PDF includes multiple part numbers: ESD24V52D-A, ESD3.3V52D-A. Please refer to the document for exact specifications by model.

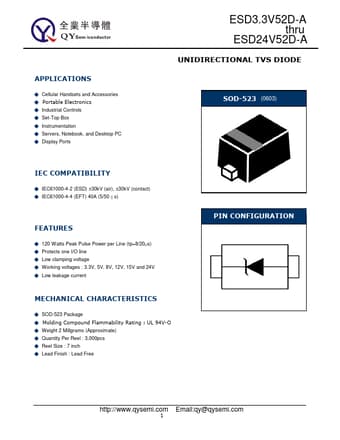

ESD24V52D-A Datasheet Preview Page 2 ESD24V52D-A Datasheet Preview Page 3

Datasheet Details

Part number:

ESD24V52D-A, ESD3.3V52D-A

Manufacturer:

QYsemi

File Size:

487.95 KB

Description:

Unidirectional tvs diode.

Note:

This datasheet PDF includes multiple part numbers: ESD24V52D-A, ESD3.3V52D-A.
Please refer to the document for exact specifications by model.
