ESD24VS2U Datasheet - Infineon

ESD24VS2U Silicon TVS diodes

Silicon TVS diodes ESD / transient protection of CAN/LIN bus networks power supply lines according to: IEC61000-4-2 (ESD): ±30kV (air / contact) IEC61000-4-4 (EFT): 80 A (5/50 ns) IEC61000-4-5 (surge): 5 A (8/20µs) ISO7637-2: Pulse 1 (max. 50 V), Pulse 2 (max. 125 V), Pulse 3a, b (max.800 V) Max. working voltage: 24 V Low capacitance: 24 pF typ. Low clamping voltage: < 41 V Extremely low reverse current: < 1 nA typ. Pb-free (RoHS compli.

ESD24VS2U Datasheet (616.43 KB)

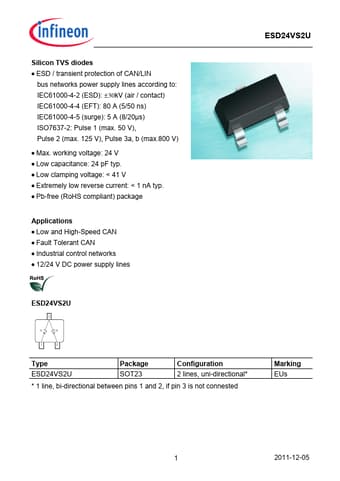

Preview of ESD24VS2U PDF

Datasheet Details

Part number:

ESD24VS2U

Manufacturer:

Infineon ↗

File Size:

616.43 KB

Description:

Silicon tvs diodes.
