Datasheet Details
| Part number | ESD245-B1-W0201 |
|---|---|
| Manufacturer | Infineon |
| File Size | 582.53 KB |
| Description | Bi-directional ESD protection device |
| Datasheet |
 ESD245-B1-W0201 Datasheet
|
|
|
| Part number | ESD245-B1-W0201 |
|---|---|
| Manufacturer | Infineon |
| File Size | 582.53 KB |
| Description | Bi-directional ESD protection device |
| Datasheet |
ESD245-B1-W0201 Datasheet
|
|
|
|

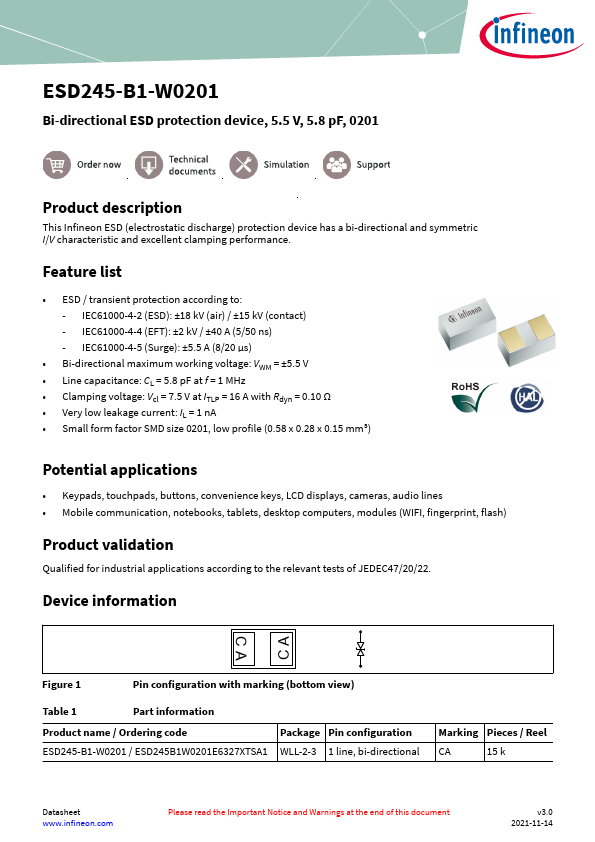

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. ESD / transient protection according to: - IEC61000-4-2 (ESD): ±18 kV (air) / ±15 kV (contact) - IEC61000-4-4 (EFT): ±2 kV / ±40 A (5/50 ns) - IEC61000-4-5 (Surge): ±5.5 A (8/20 μs) Bi-directional maximum working voltage: VWM = ±5.5 V Line capacitance: CL = 5.8 pF at f = 1 MHz Clamping voltage:
