ESD12V52D-A, ESD3.3V52D-A - UNIDIRECTIONAL TVS DIODE

ESD12V52D-A Description

APPLICATIONS * Cellular Handsets and Accessories * Portable Electronics * Industrial Controls * Set-Top Box * Instrumentation .

ESD12V52D-A Features

* 120 Watts Peak Pulse Power per Line (tp=8/20µs)
* Protects one I/O line
* Low clamping voltage
* Working voltages : 3.3V, 5V, 8V, 12V, 15V and 24V
* Low leakage current MECHANICAL CHARACTERISTICS
* SOD-523 Package
* Molding Compound Flammability Rating : UL 94V-O

ESD12V52D-A Applications

* Cellular Handsets and Accessories
* Portable Electronics
* Industrial Controls
* Set-Top Box
* Instrumentation
* Servers, Notebook, and Desktop PC
* Display Ports ESD3.3V52D-A thru ESD24V52D-A UNIDIRECTIONAL TVS DIODE SOD-523 (0603) IEC COMPATIBILITY
* IEC61000-4-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ESD12V52D-A, ESD3.3V52D-A. Please refer to the document for exact specifications by model.

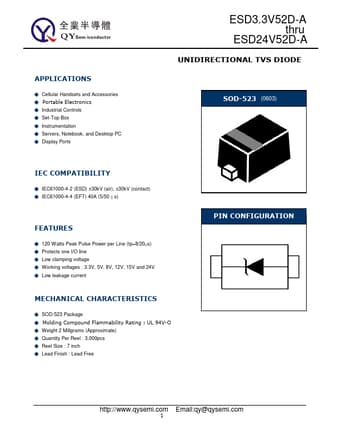

datasheet Preview Page 2 datasheet Preview Page 3
