ESD12V52D-CF, ESD05V52D-CF - Transient Voltage Suppressors

ESD12V52D-CF Description

Transient Voltage Suppressors for ESD Protection ESDXXV52D-CF Series .
The ESDXXV52D-CF series is designed to protect voltage sensitive components from ESD and transient voltage events.

ESD12V52D-CF Applications

* Cell Phone Handsets and Accessories
* Microprocessor based equipment
* Personal Digital Assistants (PDA’s)
* Notebooks, Desktops, and Servers
* Portable Instrumentation
* Peripherals
* USB Interface Mechanical Data
* 0603/SOD-523F Package
* Weight: 0.003 grams(

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ESD12V52D-CF, ESD05V52D-CF. Please refer to the document for exact specifications by model.

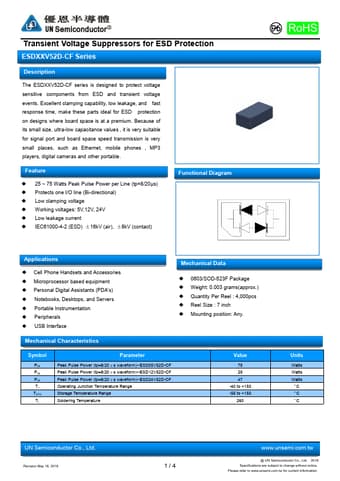

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ESD12V52D-CF, ESD05V52D-CF
Manufacturer
UN Semiconducctor
File Size
625.90 KB
Datasheet
ESD05V52D-CF-UNSemiconducctor.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: ESD12V52D-CF, ESD05V52D-CF.
Please refer to the document for exact specifications by model.
