ESD12V23T-2A, ESD3.3V23T-2A - Transient Voltage Suppressors Array

ESD12V23T-2A Description

Transient Voltage Suppressors Array for ESD Protection ESDXXV23T-2A Series .
The ESDXXV23T-2A is designed to protect voltage sensitive components from ESD and transient voltage events.

ESD12V23T-2A Applications

* Cellular Handsets and Accessories
* Portable Electronics
* Industrial Controls
* Set-Top Box
* Instrumentation
* Servers, Notebook, and Desktop PC Mechanical Characteristics
* JEDEC SOT-23 Package
* Molding Compound Flammability Rating : UL 94V-0
* Weight 8.0 M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ESD12V23T-2A, ESD3.3V23T-2A. Please refer to the document for exact specifications by model.

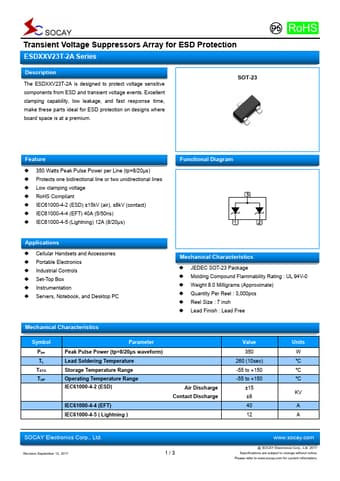

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ESD12V23T-2A, ESD3.3V23T-2A
Manufacturer
SOCAY
File Size
654.03 KB
Datasheet
ESD3.3V23T-2A-SOCAY.pdf
Description
Transient Voltage Suppressors Array
Note
This datasheet PDF includes multiple part numbers: ESD12V23T-2A, ESD3.3V23T-2A.
Please refer to the document for exact specifications by model.
