ESD123-B2-W0201 - bi-directional TVS device

Product Overview

📥 Download Datasheet

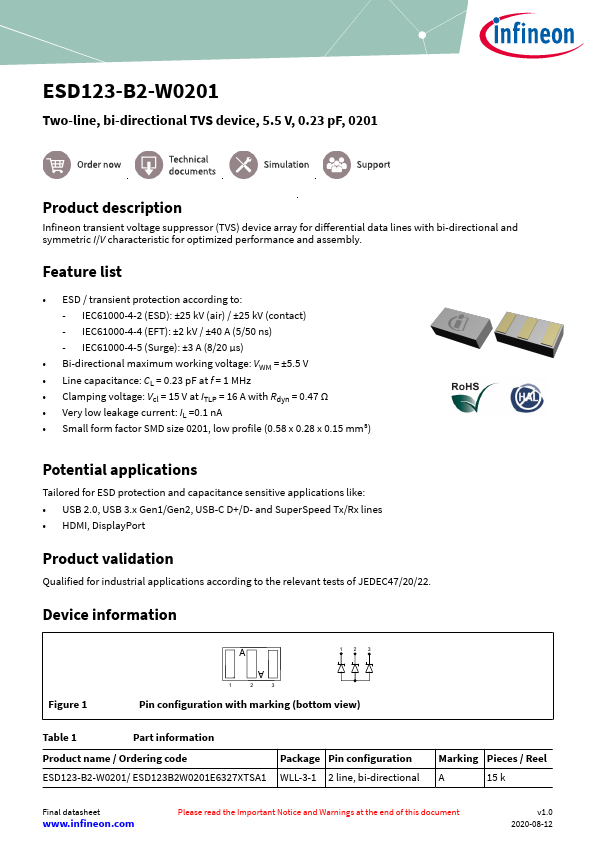

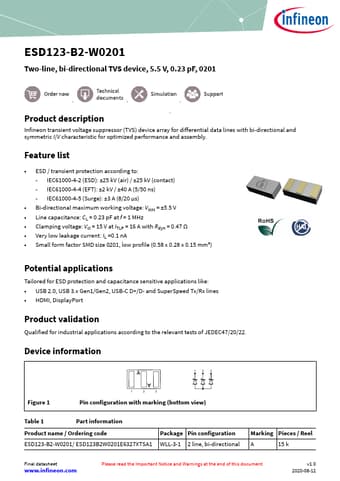

Datasheet preview – ESD123-B2-W0201

Datasheet Details

Part number ESD123-B2-W0201
Manufacturer Infineon
File Size 767.10 KB
Description bi-directional TVS device
Datasheet download datasheet ESD123-B2-W0201 Datasheet

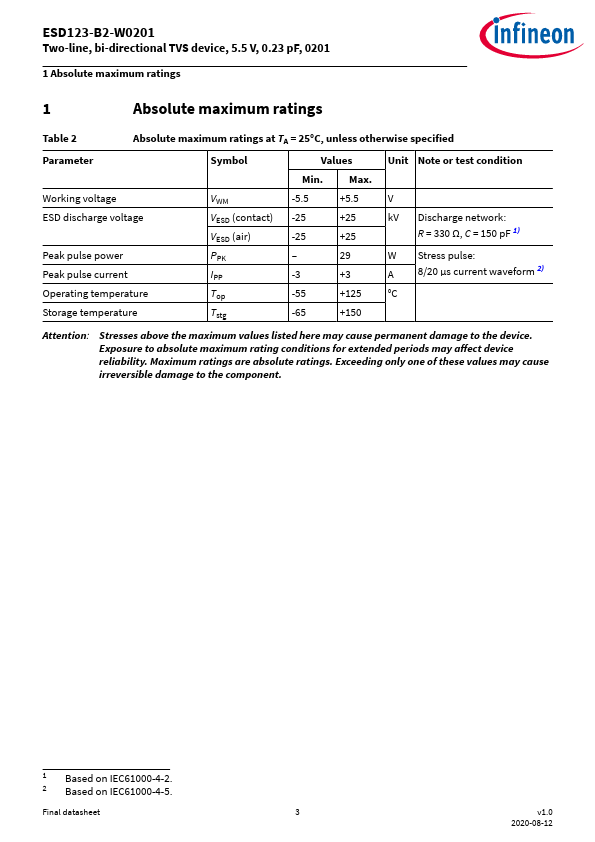

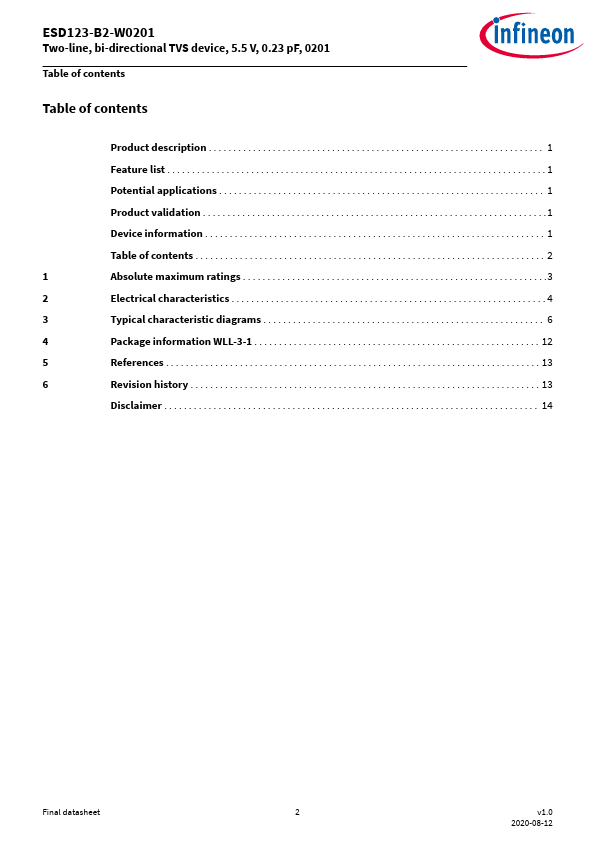

Additional preview pages of the ESD123-B2-W0201 datasheet.

Product details

Description

Infineon transient voltage suppressor (TVS) device array for differential data lines with bi-directional and symmetric I/V characteristic for optimized performance and assembly. ESD / transient protection according to: - IEC61000-4-2 (ESD): ±25 kV (air) / ±25 kV (contact) - IEC61000-4-4 (EFT): ±2 kV / ±40 A (5/50 ns) - IEC61000-4-5 (Surge): ±3 A (8/20 μs) Bi-directional maximum working voltage: VWM = ±5.5 V Line capacitance: CL = 0.23 pF at f = 1 MHz
