Datasheet Details
- Part number
- ESD3.3V52D-A
- Manufacturer
- QYsemi
- File Size
- 487.95 KB
- Datasheet
- ESD3.3V52D-A-QYsemi.pdf
- Description
- UNIDIRECTIONAL TVS DIODE
ESD3.3V52D-A Description
APPLICATIONS * Cellular Handsets and Accessories * Portable Electronics * Industrial Controls * Set-Top Box * Instrumentation .
ESD3.3V52D-A Features
* 120 Watts Peak Pulse Power per Line (tp=8/20µs)
* Protects one I/O line
* Low clamping voltage
* Working voltages : 3.3V, 5V, 8V, 12V, 15V and 24V
* Low leakage current
MECHANICAL CHARACTERISTICS
* SOD-523 Package
* Molding Compound Flammability Rating : UL 94V-O
ESD3.3V52D-A Applications
* Cellular Handsets and Accessories
* Portable Electronics
* Industrial Controls
* Set-Top Box
* Instrumentation
* Servers, Notebook, and Desktop PC
* Display Ports

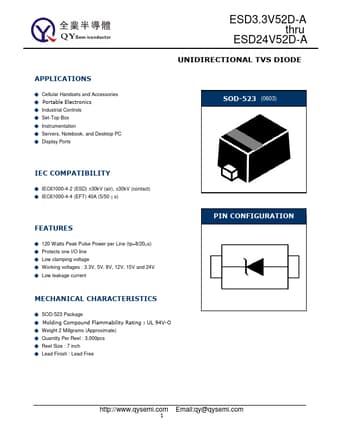

ESD3.3V52D-A thru
ESD24V52D-A
UNIDIRECTIONAL TVS DIODE
SOD-523 (0603)
IEC COMPATIBILITY
* IEC61000-4-
