FS200R07A1E3 - IGBT-Module

📥 Download Datasheet

Datasheet preview – FS200R07A1E3

Datasheet Details

Part number FS200R07A1E3
Manufacturer Infineon
File Size 567.50 KB
Description IGBT-Module
Datasheet download datasheet FS200R07A1E3 Datasheet
Additional preview pages of the FS200R07A1E3 datasheet.

📁 Similar Datasheet

  • FS200R06KE3 - IGBT-Module (eupec)
  • FS200R06KL4 - IGBT-Module (eupec)
  • FS200 - 2-PHASE DC MOTOR DRIVER (Feeling Technology)
  • FS2012 - High Performance Flow Sensor (IDT)
  • FS2012 - High Performance Flow Sensor (Renesas)
  • FS209 - 2-PHASE DC MOTOR DRIVER (Feeling Technology)
  • FS2096 - Key-Operated Safety Switches (Clrwtr)
  • FS2096-D024-F - Key-Operated Safety Switches (Clrwtr)
  • FS2096-E024-F - Key-Operated Safety Switches (Clrwtr)
  • FS20KM-6 - Nch POWER MOSFET (Mitsubishi)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

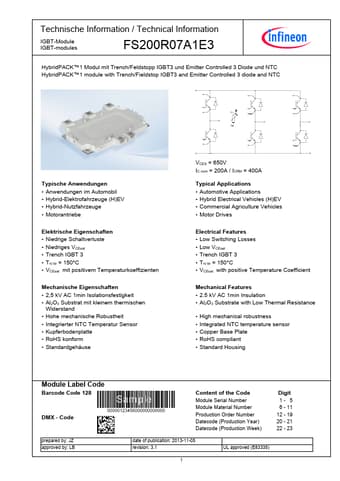

TechnischeInformation/TechnicalInformation IGBT-Module IGBT-modules FS200R07A1E3 HybridPACK™1ModulmitTrench/FeldstoppIGBT3undEmitterControlled3DiodeundNTC HybridPACK™1modulewithTrench/FieldstopIGBT3andEmitterControlled3diodeandNTC TypischeAnwendungen • AnwendungenimAutomobil • Hybrid-Elektrofahrzeuge(H)EV • Hybrid-Nutzfahrzeuge • Motorantriebe ElektrischeEigenschaften • NiedrigeSchaltverluste • NiedrigesVCEsat • TrenchIGBT3 • Tvjop=150°C • VCEsatmitpositivemTemperaturkoeffizienten MechanischeEigenschaften • 2,5kVAC1minIsolationsfestigkeit • Al2O3 Substrat mit kleinem thermischen Widerstand • HohemechanischeRobustheit • IntegrierterNTCTemperaturSensor • Kupferbodenplatte • RoHSkonform • Standardgehäuse VCES = 650V IC nom = 200A / ICR
