FS200R12KT4R_B11 - IGBT

Datasheet Summary

Features

  • Low VCEsat.
  • Trench IGBT 4.
  • Tvj op = 150°C Mechanical Features.
  • Al2O3 Substrate with Low Thermal Resistance.
  • Copper Base Plate.
  • PressFIT Contact Technology.
  • Standard Housing Module Label Code Barcode Code 128 DMX - Code prepared by: CM approved by: RS Content of the Code Module Serial Number Module Material Number Production Order Number Datecode (Production Year) Datecode (Production Week) Digit 1 - 5 6 - 11 12 - 19 20 - 2.

📥 Download Datasheet

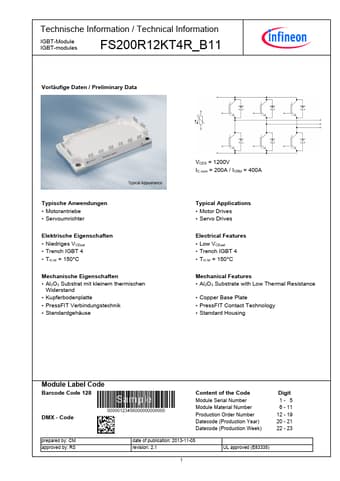

Datasheet preview – FS200R12KT4R_B11

Datasheet Details

Part number FS200R12KT4R_B11
Manufacturer Infineon
File Size 709.42 KB
Description IGBT
Datasheet download datasheet FS200R12KT4R_B11 Datasheet
Additional preview pages of the FS200R12KT4R_B11 datasheet.
