FS200R10W3S7_B11 - IGBT

Datasheet Summary

Description

J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2022-01-13 FS200R10W3S7_B11 EasyPACK™ module Table of contents Table of contents Description

Features

  • Electrical features - VCES = 950 V - IC nom = 200 A / ICRM = 300 A - Low VCE,sat - Tvj,op = 150°C -.

📥 Download Datasheet

Datasheet preview – FS200R10W3S7_B11

Datasheet Details

Part number FS200R10W3S7_B11
Manufacturer Infineon
File Size 621.50 KB
Description IGBT
Datasheet download datasheet FS200R10W3S7_B11 Datasheet
Additional preview pages of the FS200R10W3S7_B11 datasheet.

📁 Similar Datasheet

  • FS200R06KE3 - IGBT-Module (eupec)
  • FS200R06KL4 - IGBT-Module (eupec)
  • FS200 - 2-PHASE DC MOTOR DRIVER (Feeling Technology)
  • FS2012 - High Performance Flow Sensor (IDT)
  • FS2012 - High Performance Flow Sensor (Renesas)
  • FS209 - 2-PHASE DC MOTOR DRIVER (Feeling Technology)
  • FS2096 - Key-Operated Safety Switches (Clrwtr)
  • FS2096-D024-F - Key-Operated Safety Switches (Clrwtr)
  • FS2096-E024-F - Key-Operated Safety Switches (Clrwtr)
  • FS20KM-6 - Nch POWER MOSFET (Mitsubishi)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

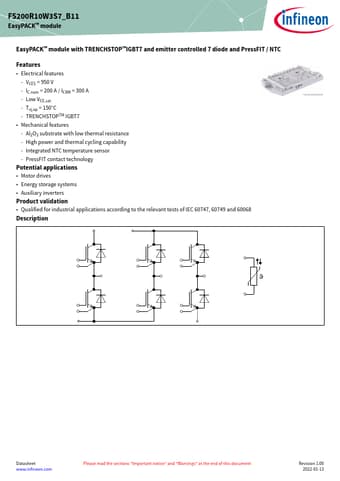

FS200R10W3S7_B11 EasyPACK™ module EasyPACK™ module with TRENCHSTOP™IGBT7 and emitter controlled 7 diode and PressFIT / NTC Features • Electrical features - VCES = 950 V - IC nom = 200 A / ICRM = 300 A - Low VCE,sat - Tvj,op = 150°C - TRENCHSTOPTM IGBT7 • Mechanical features - Al2O3 substrate with low thermal resistance - High power and thermal cycling capability - Integrated NTC temperature sensor - PressFIT contact technology Potential applications • Motor drives • Energy storage systems • Auxiliary inverters Product validation • Qualified for industrial applications according to the relevant tests of IEC 60747, 60749 and 60068 Description J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.
